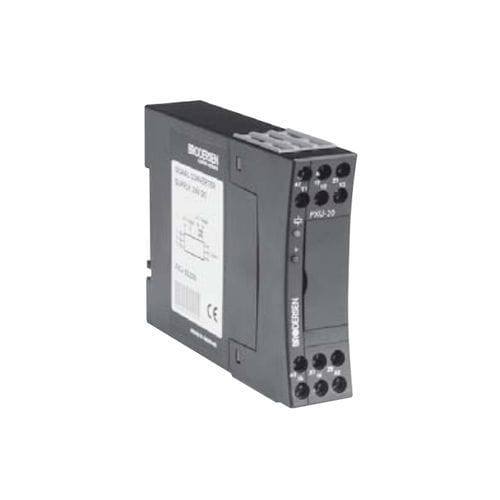

Resistance to analogue converter for the conversion of a resistance to an analogue process signal with galvanic isolation. A typical application would be to convert a resistor probe to an analogue input of a PLC and provide galvanic isolation between input and output.
Input, output and operating voltage are isolated to 3,75kV AC and are therefore suitable for applications suffering from potential differences.
The resistor input range and range and type of analogue output is selected via choice of terminals - See wiring diagram.
Features:
• Input 0 - 1kΩ and 0 - 5kΩ in one version.
• Output 0-10VDC/2-10VDC/0-20/4-20mA - selected via terminals.
• Output offset and gain adjustable ±5%.
• LED indication of input less that 5% / i.e. indication of probe failure.
• Galvanically isolation supply/input/output is 3,75kV AC 1 min.
• Operating voltage 12-48VAC/DC, 115-230VAC.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
analog
|
| Associated function |
isolator
|
| Other characteristics |
DIN rail
|
