About

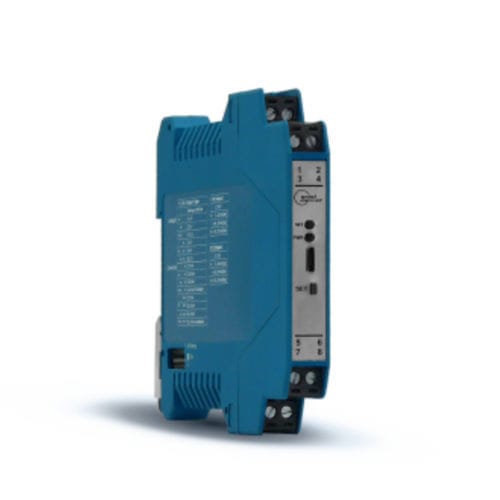

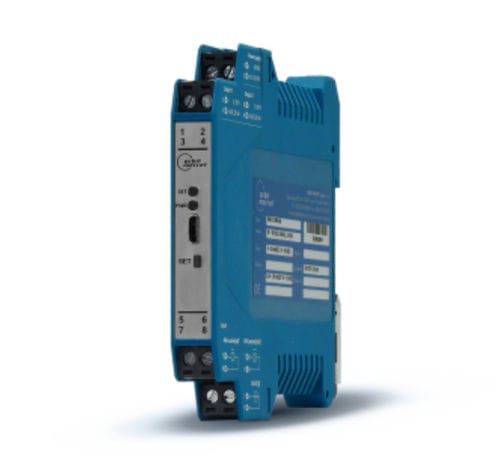

The OMX 200 model series are digital DIN rail mounted signal converters housed in an enclosure only 12.5 mm wide.
The OMX 212PM type is a simple single-channel isolator/splitter with a convenient setting of the input and output ranges either using a DIP switch on the side of the housing or the free OM Link SW from a PC.
You can also use this converter as a splitter into 2 analogue outputs.
This device is based on a microprocessor with a 24-bit ∆∑ A/D converter, which guarantees high accuracy and excellent stability.
Input: 0…2/5/10 V
0…5/20 mA, 4…20 mA, passive/active
2x Analogue outputs, passive/active
Quick configuration by DIP switch
PC configurable via USB port
Galvanic isolation 2.5 kVAC
Simple instalation to DIN rail
Power supply 10…30 VDC, 24 VAC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
analog
|
| Associated function |
|
| Other characteristics |
|
