About

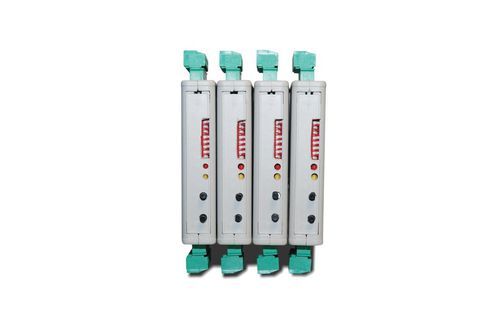

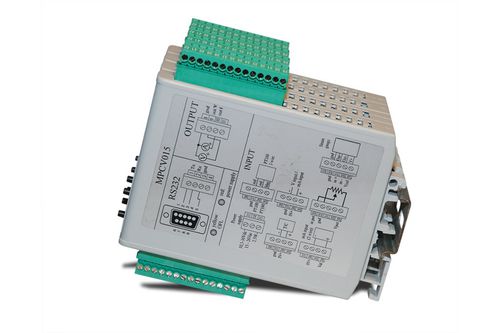

MPCV015 signal converter (analog input converter) is a trasmitter with 1500V of triple galvanic isolation.
This model is completely configurable by RS232 serial output. It's available a RS485 serial output to connect each converter to host PC or PLC.
Signal converters (analog input converter) with RS485 output have the address setting via mini-dip.
Accuracy better than: 0,5%
Thermal stability: 50 ppm/°C
Transducer power supply : 16V/ 20mA (unregulated)
Potentiometer/strain gauge power supply: 10Vdc 40mA
Inputs: RTD PT100; TC: J, K, S, T; 0÷20mA; 4÷20mA; 0÷10V; frequency; strain gauge; potentiometer
Frequency: 5KHz max
Connectable potentiometers: from 500Ω to 50KΩ
Analog outputs features:
Outputs: 0÷20mA, 4÷20mA, 0÷10V
Max load for current output: 400Ω
Min. load for voltage output: 1KΩ
Resolution: 12bit
Housing dimensions: 113 mm(h) x 113mm(l) (17.5mm depth)
Power supply: 10,5÷30Vdc /15÷26Vac
Power absorption: 1,5W
Temperature range: 0÷50 °C
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
analog
|
| Other characteristics |
|
