Analog signal conditioner LMU 210 Series

Analog signal conditioner LMU 210 Series

Analog signal conditioner LMU 210 Series

About

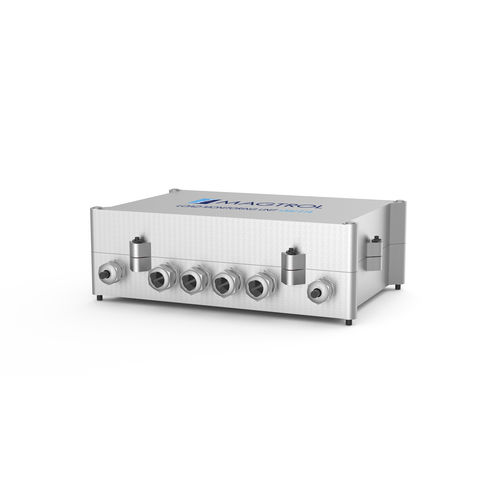

The specially developed LMU 212 Load Monitoring Unit completes Magtrol's range of "Load-Force-Weight" products. The device includes an amplifier for strain gauge bridges intended for load measurement. The device includes strain gauge bridge input and a voltage input to allow summation of the two signals when needed. The unit can be supplied at 115 V AC/ 230 V AC or at 20, 32 V DC based on customer's choice. LMU 212 is designed to provide 2 relay outputs, 1 current output and 1 voltage output.

The unit contains 2 alarms setting outputs that are particularly suitable for load / overload survey on cranes and other lifting devices. A built-in self-test system enables detection of any short circuits or signal line failures for use in security systems. The customer can use the integrated test function (B.I.T.E.) to simulate a fictitious load.



PARAMETERS

Parameter Name Parameter Value
Options
  • analog
  • multi-channel
  • amplifier
  • 4-20 mA
  • programmable
  • configurable
  • ultra-rugged
  • 2-way
Applications
  • for strain gauges
  • load cell
  • for load cells
  • extensometer
