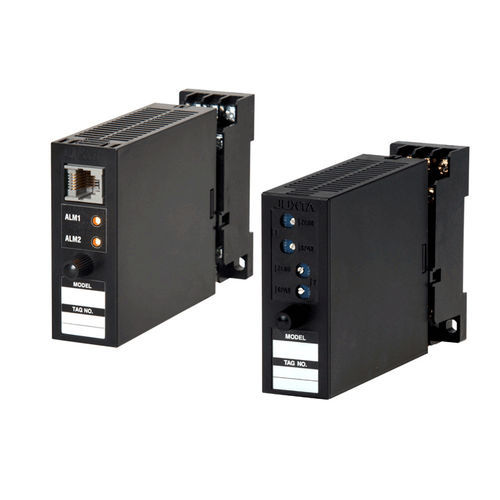

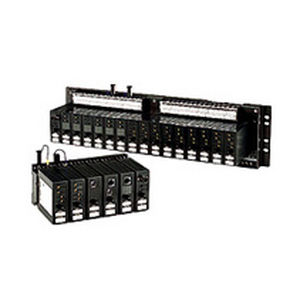

Compact size, plug-in style and microprocessor based high performance capabilities (Multi-function types) makes the VJ Series an excellent choice for almost every application. Analog output, Hi-Low alarm relay outputs or RS-485 MODBUS communication is available as optional second output. Various parameters such as input range and computation programs can be set and modified using a PC (VJ77) .

Compact design for space saving.
The external dimensions are 76 H×29.5 W×124.5 D (mm).
Power supply voltage is either 100 to 240 V AC or 15 to 30 V DC.
The standard withstand voltage : 2000 V AC
Between Input - Output - Power - Ground
Two isolated outputs*
Second isolated current or voltage (pulse) output is available as optional feature.
Communication function*
Optional MODBUS (RS-485) communication function can be obtained simultaneously with analog output signal from one VJ.
Alarm outputs*
Bi-directional relay of HART communication signals is possible while the field devices and the DCS are isolated from each other.
Field configuration*
If you have a computer with the VJ77 parameter setting tool installed, you can set up the microcomputer-based VJ on site.
Three years warranty*
Supports overseas safety and EMC standards (CE, UL, CSA, etc.)*
Universal input
You can configure the VJU7 Temperature Converter for input from thermocouples, RTDs, or mV signals.
HART communication signal relay function (VJA1/H, VJH1/HC)
You can perform HART communication between field devices and DCS that have the HART function (isolated between input and output).
Output open detection function (VJH1/C, VJH1/HC)
Enables detection of the open state of an isolated load circuit with the input device.

Parameter Name	Parameter Value
Options	analog configurable RS-485
