OLED display
3 channels
Accuracy better than 0.5>#/li###
Mains powered
Wide frequency band and low noise
User selectable gains
Adjustable low pass filter
Output overload indicator. When output is larger than 10V+1V the indication will be on

Constant Gravity Measurements
General Vibration Measurement
Seismic Vibration Measurement
Crash Testing
Auto/Aero Structural Body Surveys

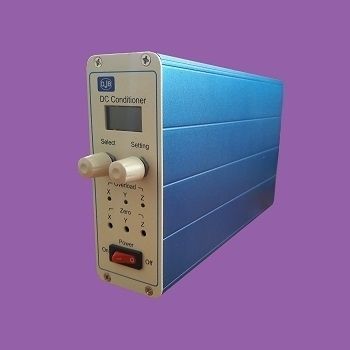

The DCM-03 MEMS DC signal conditioner is for use with DJB’s range of AM, AMB and AMT variable capacitance MEMS accelerometers. The unit has 3 channels and can be used with three single axis capacitive accelerometers or one triaxial capacitive accelerometer. Offering a wide range of features in a compact and powerful unit the DCM-03 is the perfect addition to your low frequency testing system.

AM/2.1000 Monoaxial, ±2g, 1000mV/g
AM/2HR.1000 High Res. monoaxial ±2g, 1000mV/g
AM/5.300 Monoaxial, ±5g, 300mV/g
AM/10HR.200 High Res. monoaxial ±10g, 200mV/g
AM/20.100 Monoaxial, ±20g, 100mV/g
AM/50HR.40 High Res. monoaxial ±50g, 40mV/g
AMB/2.1000 Biaxial, ±2g, 1000mV/g
AMB/2HR.1000 High Res. biaxial ±2g, 1000mV/g
AMB/5.300 Biaxial, ±5g, 300mV/g
AMB/10HR.200 High Res. biaxial ±10g, 200mV/g

Parameter Name	Parameter Value
Options	analog multi-channel
Applications	for accelerometers
