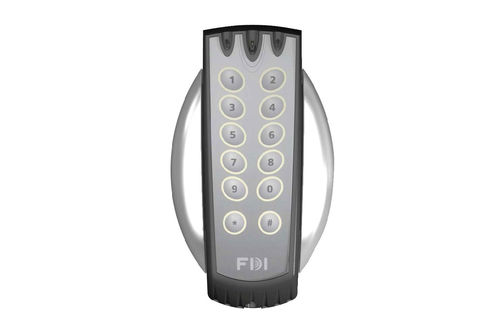

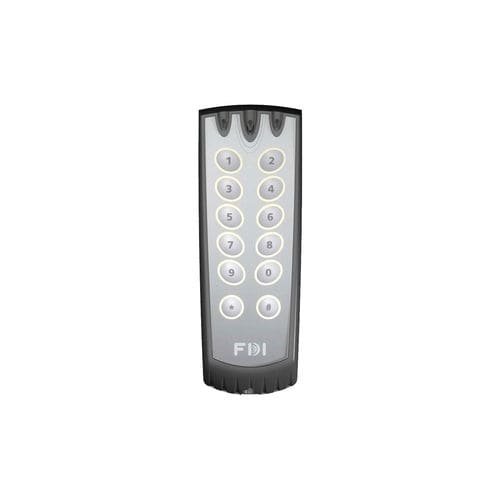

■Same as FD-144-011 + keypad
■Embedded web server.
■2 wires between reader Controller distance max. 100m
■5000 keys / 100 groups / 5 administrator access / 20 timeslots / 20
holiday periods /16 voicemails
■Per door 1 relay, 1 entry BP, 1 door contact, 1 reader
■Map option : 2 analog inputs with end of line resistor + 2 outputs that
can be customized
■Embedded web server.
■Sending messages (alerts by e-mail after an event or pre-programmed
report)
■SAS Mode (example: building input)
■Wifi Version available
■Power supply: POE 12/24 AC I DC
An embedded web server friendly and intuitive : no software to install,easy
update via IP on existing network. Creation / Backup / Restore Database
simplified. Remote door opening (impluse or hold). Multi-user (login of
several users to controller)
A cost saving solution :remote checking, management and maintenance.
Off site control of the devices working status
High security : view of the events and management in real time. Access
granted with a key, a code or key+code (secured mode. Management of
"anti-panic code". Key cancellation in real time. Possible link to 2 iP video
cameras (not included)
A wide range of readers : proximity reader 13.56 MHZ with or without
keypadd. Customizable voice messages. Examples: "Access denied",
"acess granted". 3 programmable status led (red, orange and green).
It is also available the standalone controller/reader 13.56 MHZ + voice
messages + keypad + Wifi Option : FD-144-015.

Parameter Name	Parameter Value
Type	analog
Control interface	with buttons
Number of buttons	12-button
Product applications	for doors
