Each voltage or current output can be programmed individually. The X-417 is designed for remote connectivity from the ground up.

Industrial Analog Output Control

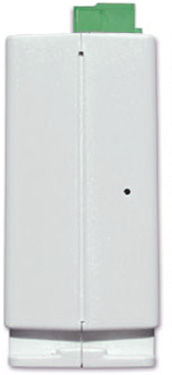

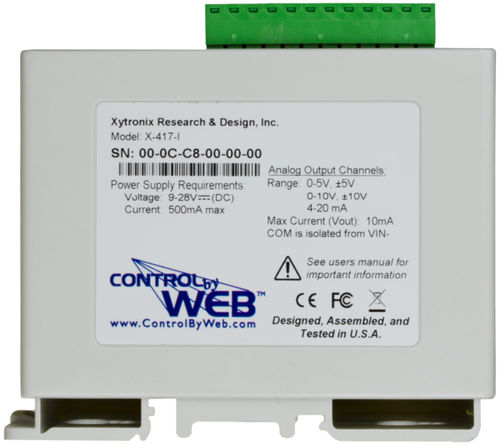

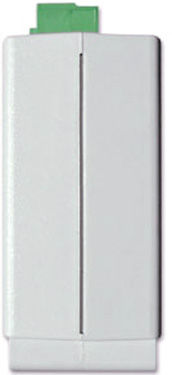

The X-417™ module has up to 5 analog outputs. Each channel is individually programmable to output a voltage or current.

The intuitive embedded interface includes data logging for each analog channel. This makes record-keeping, validation, and data acquisition a breeze.

It can be accessed and controlled over any TCP/IP network. This includes remote monitoring via the Internet, on the ControlByWeb cloud service or on your Local Area Network (LAN).

Up to 5 Analog Outputs (Multi-Function)

The five individually programmable analog outputs on the X-417 feature precision 16-bit digital to analog converters (DACs).

Each channel can be set to either voltage (0-5V, 0-10V, ±5V, ±10V) or current (4-20mA) outputs.

Control damMonitor and Control up to 64 I/O
The X-417 supports peer-to-peer, over-the-network communication between other ControlByWeb modules, and instantaneous communication between 400 Series products. This means the X-417 can monitor and control I/O on other 400 Series products as if directly connected. It can communicate with up to 32 modules and allows you to monitor and control up to 64 I/O points. Simply install them on the same network or connect them on separate networks via port forwarding.per motors, variable frequency drives (VFDs), actuators, and more.

Parameter Name	Parameter Value
Signal type	analog
Bus	LAN
Type	network
Applications	voltage current
Mounting	embedded
Other characteristics	programmable multi-function
