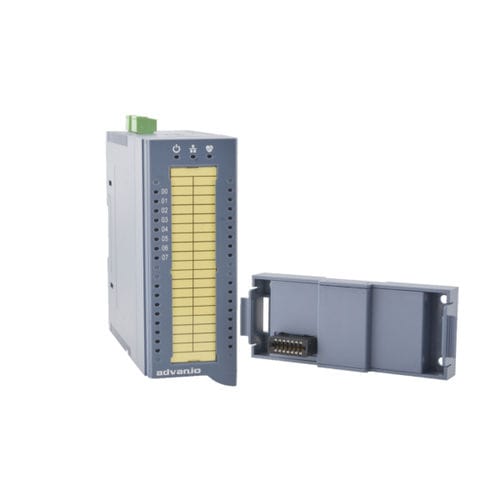

【W-M1B201】8 Channels Analog Output Module

Current Output Capacity 500Ω
Voltage Output Capability 10V @10mA
8 LEDs as Analog Output and Fault Indicators
Disconnection Detection 4~20mA
Output Response Time 10ms

Introduction
W-M1B201, 8-channel analog output module in which reliable performance and high cost-effective values support the operating on site works smoothly and win the user satisfaction.

Specifications
Analog Output
Channel8 Channels
Output Type
Voltage / Current
Voltage Output Range
±5V, ±10V, 0-5V, 0-10V
Current Output Range
4 ~ 20 mA, 0 ~ 20 mA
Output Response Time
10ms
Resolution12-bit
Accuracy
± 0.1% FSR
Programmable Output Slope
Voltage: 0.0625 ~ 512 V/Sec
Current: 0.125 ~ 1024 mA/Sec
Voltage Output Capacity10V @ 10mA
Current Output Capacity500Ω
Channel Independent Configuration Yes
Power On Value / Safety Value Programmable
LED Display8 LEDs as Analog Output; 8 LEDs as Fault Indicators

General
Interface
RS-485
Communication ProtocolModbus RTU
Communication SpeedFrom 1200-115.2 kbps
Communication Distance1.2 km at 9.6 kbps
Power Consumption0.5W @ 24V (No-Load) / 3.6W @ 24V (Max-Load)
Power Requirement10 – 60 VDC
Watchdog TimerSystem (1.6 Second Fixed)
Intra-Module Isolation, Field-to-Logic2500 VDC

Environmental
Temperature-25 to +70 ºC (Operating); -30 to +75 ºC (Storage)
HumidityOperating Relative Humidity: 10% to 90% (non-condensing)

Dimension
Weight65g (Average)
Dimension472mm x 121mm x 120mm

Parameter Name	Parameter Value
Signal type	analog
Bus	RS-485
Type	safety
Applications	voltage
Number of inputs/outputs	8-channel
Other characteristics	programmable
