Programmable analog output modules with 2 outputs for FRER Network Analyzers

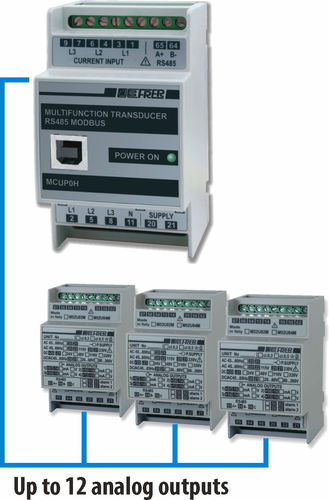

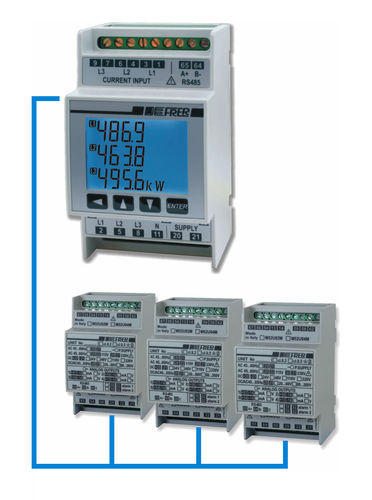

The M52U... modules with 2 or 4 analogue outputs allow, when connected to a FRER multifunctional analyser, to generate up to 12 analogue outputs (using up to 3 modules with 4 outputs), proportional to the same number of measurements made by the analyser itself. In addition, on each module, 2 additional alarm outputs are available (as an option).
Each analogue output is fully and individually configurable in the field, as is each additional alarm output. Programming is done via dedicated software that interfaces with the network analyser.

Parameter Name	Parameter Value
Signal type	analog
Mounting	DIN rail mounted
Other characteristics	programmable
