-Four 4/20mA unpowered outputs
-Each output is galvanically isolated
-Ex ia intrinsic safety certification
-Certification allows module to be plugged into a Pageant BA3101 Ex ia intrinsically safe Operator Display

Product details

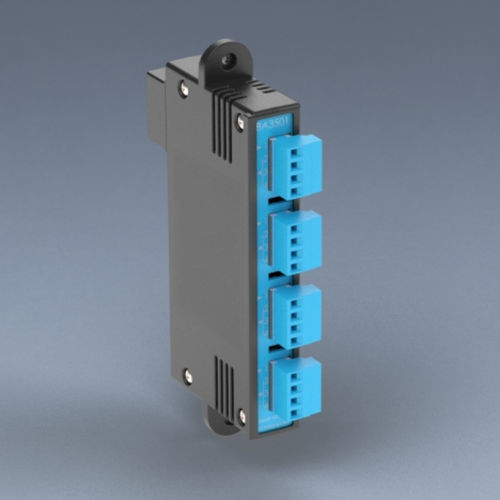

The Pageant BA3501 module has four individually isolated unpowered 4/20mA passive outputs. Separate apparatus certification for the module allows it to be safely plugged into any one of the seven slots on a Pageant BA3101 operator display without the need for additional certification or approval.

If requirements change, a BA3501 module may be fitted on-site to an Operator Panel which has already been installed and commissioned.

Parameter Name	Parameter Value
Signal type	analog
Type	safety
Number of inputs/outputs	4 analog outputs
Mounting	plug-in panel
Other characteristics	intrinsically safe
