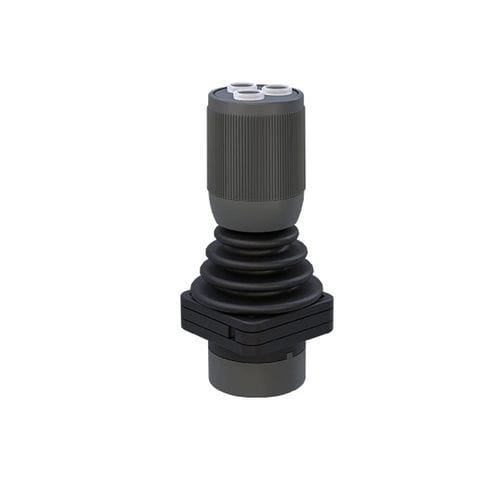

Mini Joystick

Contactless Hall Effect Measuring Principle (for safety double sensor output per axis)
Single axis, 2 axis (plus and square) and Z axis options

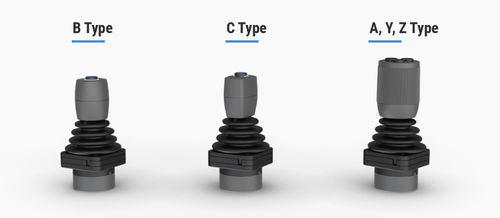

Grip types up to 3 buttons
Up to 5 million cycles for no detent, up to 2 million cycles for Z axis and up to 500k for Z axis with detent
Up to 2 million cycles for the grip buttons

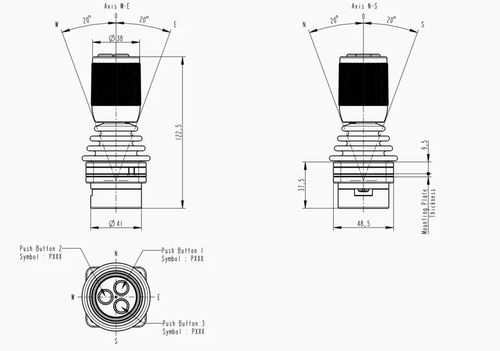

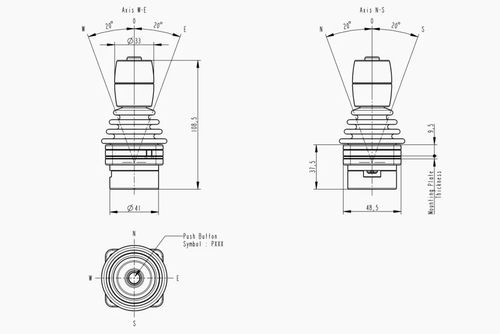

± 20° operating angle
Self Centering Lever
± 45° Z Axis working angle
40° Detent working angle with 3 detent positions
Different types of outputs such as Analog Voltage, Current PWM, CAN j1939, CANopen and USB
-40C° … +85C° Operating temperature
IP65 from top to mounting plate

Parameter Name	Parameter Value
Technology	analog Hall effect 2-axis 4-way 3-axis
Applications	for remote control for medical applications for motorized stages for assistive technology
Other characteristics	with buttons IP67 IP65 programmable PWM
