ELPRO Condor 415U-2 I/O Gateway now supports IoT with MQTT and Sparkplug gateway for local inputs/outputs and external devices.

The latest Condor Series IoT I/O Gateway now includes support for MQTT and Sparkplug allowing IoT connectivity directly at the plant or equipment being monitored or controlled. This makes the 415U-2 “first in class” with built in IoT protocol support for use in narrow band licensed or unlicensed frequencies.

The 415U-2 includes protection from cyber attach with advanced cybersecurity features that meet the most stringent standards, event logging and improved configuration software for seamless network setups.

The ELPRO 415U-2 Includes data throughput to an industry-leading 140kbps at 25kHz channel using efficient context-based data compression in licensed applications and up to 10W of transmit power. The Condor Series products come in six easy-to-select frequency bands:

-148MHz – 174MHz,
-340MHz – 400MHz,
-400MHz – 480Mhz
-470MHz – 520MHz
-894MHz – 902MHz
-930MHz – 960MHz

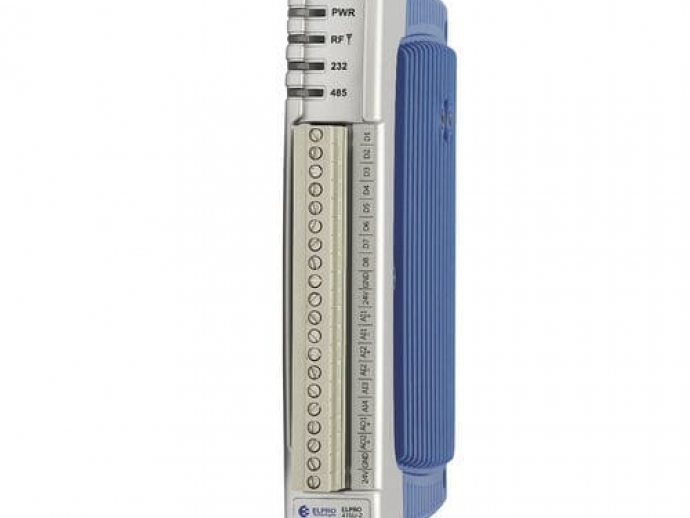

The ELPRO 415U-2 wireless networking I/O and gateway is a multiple I/O node that extends communications to sensors and actuators in local, remote, or difficult to reach locations. Designed with a long range, license or license-free wireless transceiver, the 415U-2 can provide IP-based networking across sprawling industrial environments typical of industrial applications.

Now with MQTT and Sparkplug protocol support, the 415U-2 allows for IoT gateway to be located directly at the plant or equipment. Including I/O timestamping at the source and support for connection with up to four MQTT broker/servers

Parameter Name	Parameter Value
Signal type	analog
Bus	wireless
Type	network
Number of inputs/outputs	2 analog outputs 4 analog inputs
Mounting	DIN rail
