Highlights
• - 4-Channel 12-Bit Wireless 0-10V Input endNode with USB
• - Each Analog Input Includes a Dedicated Non-Shared Ground Input
• - For Use with Existing Sensors that Already Include a Power Solution
• - Long Range Wireless Communications with 128-Bit AES Encryption
• - USB Communications Interface with Virtual COM Port Access
• - Dual 9-32V DC Power Interface with Power and RGB Status LEDs
• - Long Range Wireless Communications up to 2 Miles at 900MHz
• - 900MHz, 868MHz and 2.4GHz Wireless Options with Antenna
• - Pluggable Connectors for Wireless 0-10V Input and Power
• - Based on NCD endNode Wireless I²C Architecture
o - I2C Expansion Port for Limitless Expansion Capabilities
o - Expandable to Control NCD I2C Devices and Sensors
o - ProXR Enterprise Command Set for I2C Relay Expansions

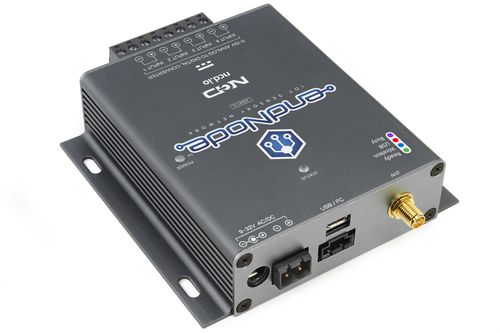

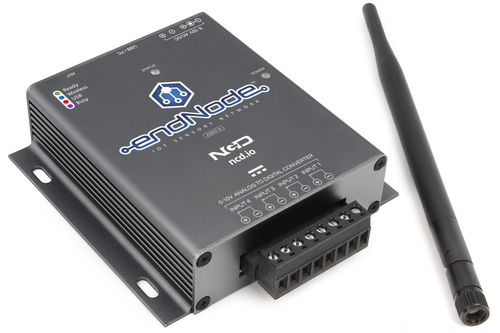

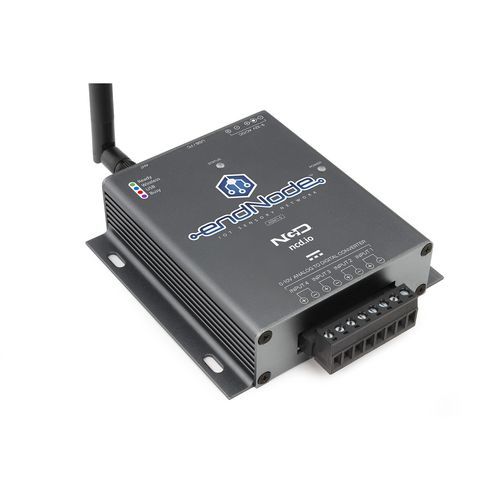

Wireless 0-10V Inputs
Introducing the world’s most powerful Wireless 0-10V input receiver. The ASM1-6 makes it easy to read industrial 0-10V sensors with an incredible 2-Mile wireless communication range using 128-Bit AES Encryption. Read industrial 0-10V pressure sensors, temperature sensors, flow meters, ultrasonic sensors, level sensors, force sensors, weight sensors, distance sensors, strain sensors, and much more with a 12-Bit Resolution. Use several ASM1-6 endNodes and talk to each endNode using secure wireless communications. Read wireless 0-10V inputs on the factory floor, as we have tested this wireless technology in factories in excess of 1 mile indoor line-of-sight with heavy industrial machines operating.

Parameter Name	Parameter Value
Signal type	analog
Bus	USB, wireless
Number of inputs/outputs	4-channel
