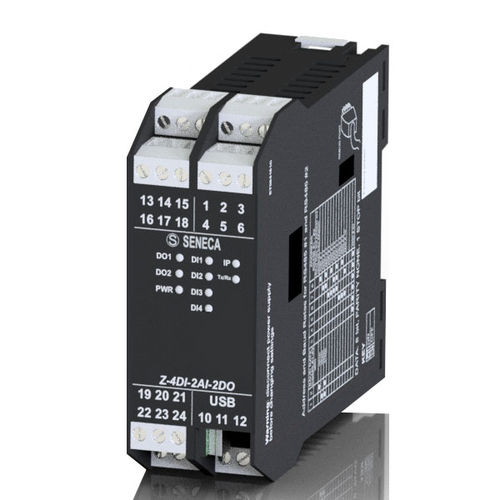

Z-4DI-2AI-2DO is a I/O module with 4 digital inputs, 2 analog inputs, 2 relay outputs, slave for Modbus RTU, on two RS485 serial ports. The module allows the possibility to set the parameters via USB (Easy setup software) an registers repetition on Modbus RTU protocol (NR.2 independent RS485 slave ports). Baud rate for ModbusRTU is from 1.200 up to 115.200 bps. Signal configuration include 2 analog inputs (voltage or current), 4 digital inputs (NPN or PNP), 3 relay outputs, 4 counters and 4 totalizers @ 32 bits, max 7 kHz. Z-4DI-2AI-2DO has 1.500 Vac galvanic isolation between power supply and communication.

Status LED indicators - Power supply
Rx/Tx ModBUS
Inputs / Outputs status
Fail
Connections - Removable screw terminals for conductors up to 2.5 mm2
IDC10 connector for DIN rail 46277
Micro USB on the side
RJ45
Programming - DIP Switch (default settings reset)
Web Server
EASY SETUP
Serial ports - Nr.1 RS232/RS485
Nr.1 RS485
Speed - Up to 115.200 bps
Supported protocols - ModBUS RTU
USB port - Nr.1 micro USB on the side
Digital inputs - Nr.4
Type of digital inputs - PNP / NPN; Voltage input OFF 8V (max. 24 Vdc)
Max frequency 5 kHz
Power consumption 3mA @ 12Vdc, 10mA @ 24Vdc
Digital input counters - Nr.4 resettable counters @32 bit max 5 kHz
Analog inputs - Nr.2
Type of analog inputs - 0-20 mA / 0-30 V
Resolution up to 16 bit
Protection 40V / 25mA
Digital outputs - Nr.2
type of digital outputs - relays NA / NC SPDT, max 250Vac - 2A
Mounting - DIN rail guide 35 mm DIN 46277
Operating temperature - -25..+70°C
Storage temperature - -30..+85°C
Humidity - 30..90% non-condensing
Dimension - 35x102.5x111 mm
Weight - about 110 g
Housing - PA6, black color
Standard - CE

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Modbus RTU, USB, RS485, RS232
Applications	voltage current
Number of inputs/outputs	4 digital inputs with relay output 2 analog inputs
Mounting	DIN rail DIP
Other characteristics	slave
