X-Series, XL-Series ready (CsCAN version)
Capable of handling Digital/Analogue/Mixed/RTD & Thermocouple signals
DIN rail mountable
Easy to expand
Powered by 24V DC
Completely configurable from Cscape

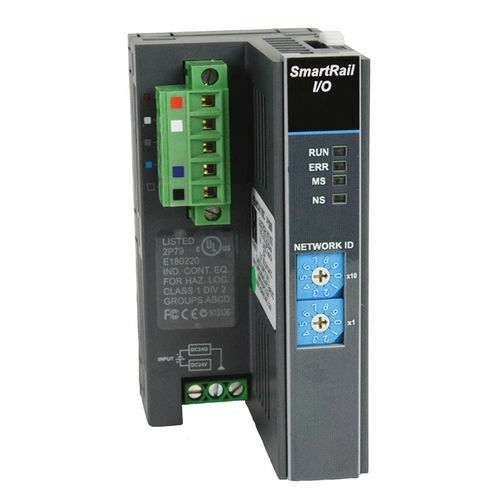

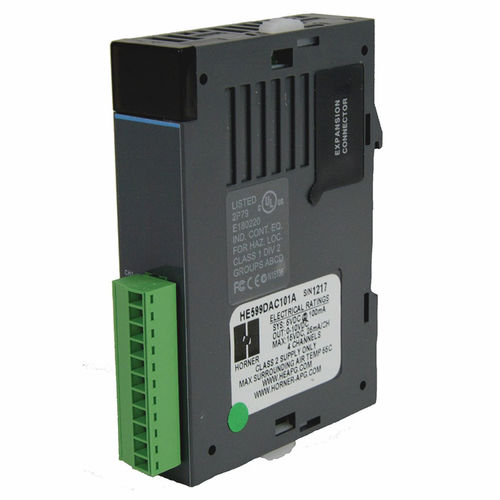

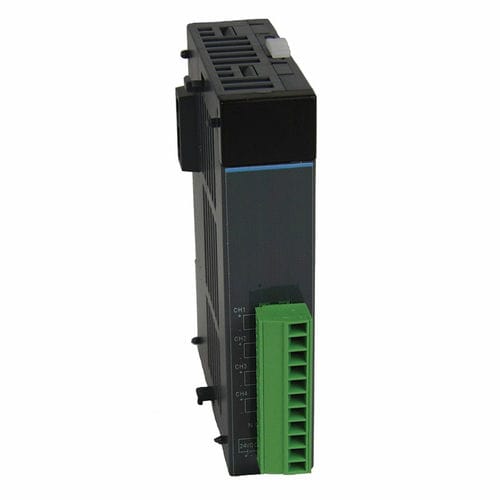

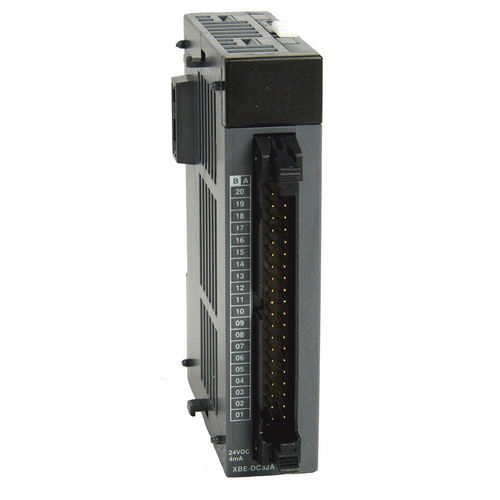

SmartRail based I/O is a modular I/O system for Horner OCS supporting Ethernet, CsCAN and CANopen based protocols. It is a flexible I/O system that can be applied as a local expansion I/O or remote I/O. SmartRail I/O is easily configured using Cscape programming software. Just select your I/O base – and then start adding I/O modules. Cscape even calculates I/O power usage for you automatically – so you’ll never overload an I/O base.

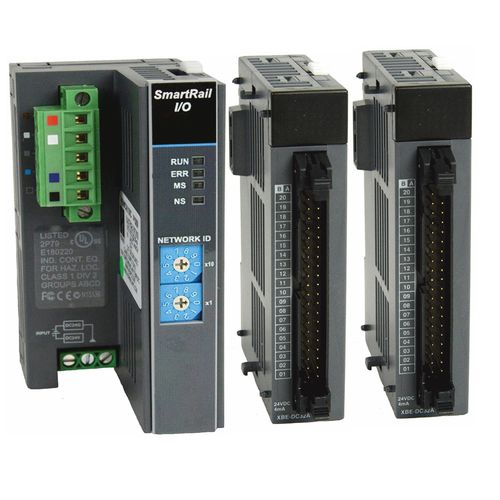

Each base can hold up to 8 I/O modules, for a total of up to 256 digital and 32 analogue points. Additional bases can be daisy-chained to complete the application – up to a total of 2048 digital and 512 analogue I/O.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Ethernet, CANopen
Type	remote
Number of inputs/outputs	8 digital inputs 16 digital inputs with relay output 4-channel 32 digital inputs
Mounting	DIN rail
Other characteristics	configurable flexible
