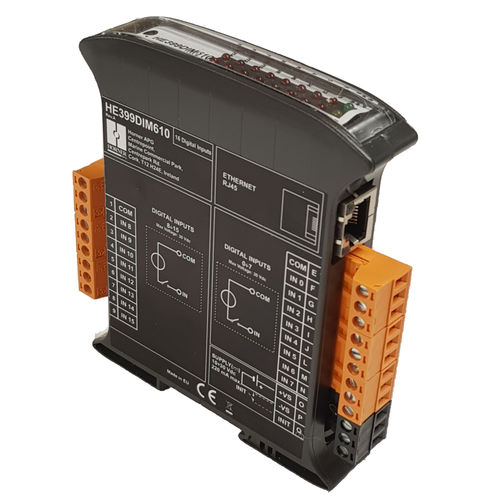

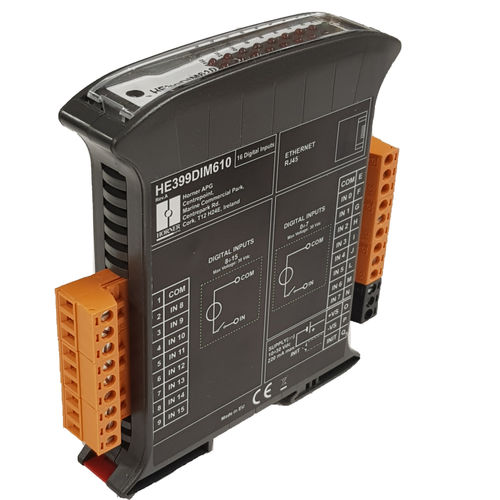

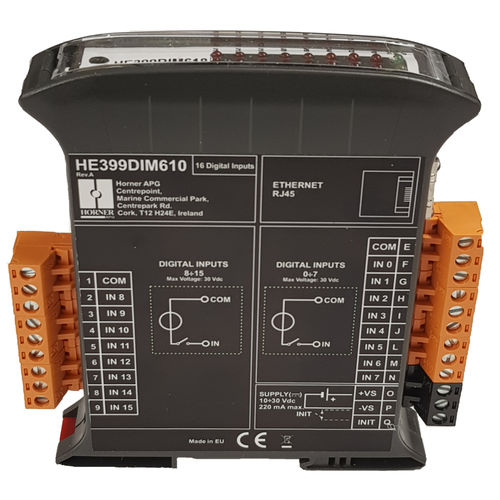

SmartMod+ expandable I/O supporting Modbus TCP/IP communication protocol.

Modbus TCP/IP

-Traditional slice type I/O
-Connects to Ethernet via RJ45 to any XL-Series OCS or other OCS/RCS family controller
-DIN rail mountable
-Removable screw-terminals
-A Selection of SmartMod+ Modbus/RTU modules are available to choose from including:
-DC In, DC Out
-Analogue In, Analogue Out
-Relay
-RTD
-Thermocouple

SmartMod+ Modbus TCP/IP I/O is available to expand your OCS system and supports the Modbus TCP/IP communication protocol. SmartMod+ connects via RJ45 to any XL-Series controller, and can cost effectively provide additional points of I/O to any solution and is a great choice for expanding X-Series OCS when one or more digital or analogue I/O are required. SmartMod+ I/O are so compact, they will fit in the smallest of spaces. The SmartMod+ range of remote I/O modules represent innovative solutions capable of satisfying the requirements of small to medium size automation systems, ideal for maximum performance and process reliability, enabling communication between multiple devices connected to the same network.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Ethernet, RJ45, Modbus RTU, Modbus TCP
Type	remote network
Applications	automation
Number of inputs/outputs	8-channel 4-channel 16-channel
Mounting	DIN rail
Other characteristics	compact IP
