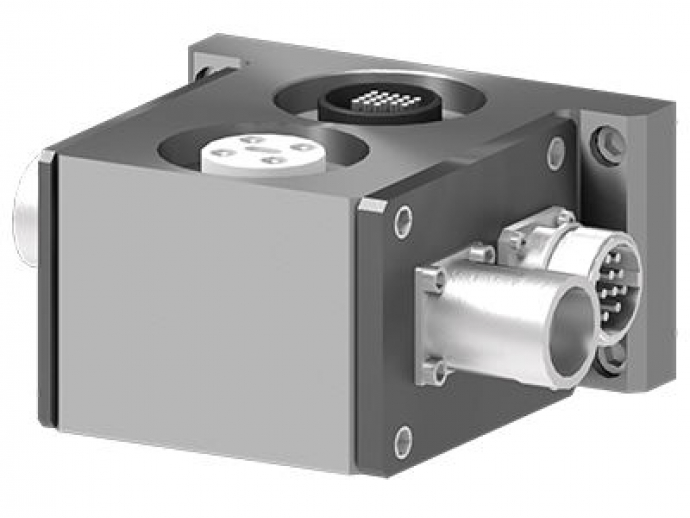

Along with the standard offer of pneumatic and electrical modules, PES proposes engineering capabilities for developing custom electrical/pneumatic modules or accessories for Sigma Series tool changers. We offer a wide range of off-the-shelf custom modules enhancing Sigma tool changers communication capabilities or safety and if needed, we will be pleased to adapt our product to your specific requirements. The servo module S-EM-R-E-06IC8_IC12_M23.19X is a special electrical module that aims to transfer the signals required by a servomotor that is, power and feedback signals. The power contact are seperated from signals one to ensure electromagnetic compatibility to reliably retrieve encoder or other high frequency control signals. This module is widely used for robotic welding guns applications.

Weight - 1.00 kg
Type - Electrical Module
Size - 110x100x60mm
Material - Aluminium
Connector - 1xM23/19p 1xInterconnectron 8p 1xInterconnectron 12p
Voltage rating - 400 V
Amperage rating - 25 A
Number of contacts - 36

Parameter Name	Parameter Value
Signal type	analog
Bus	ProfiNet
Other characteristics	custom
