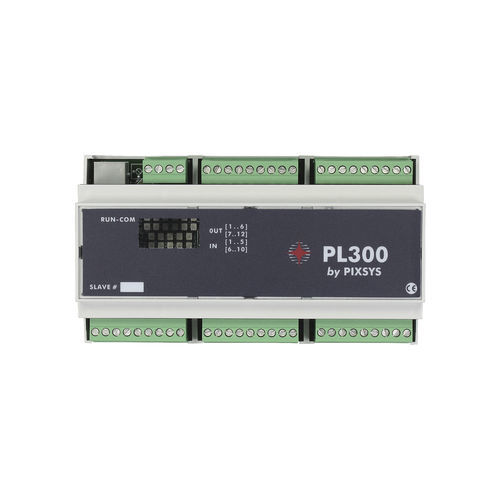

Acquisition and actuation module, usable as extension for operator panels with integrated logic ( ATR313, TD329, TD240) or SCADA software. In a standard container DIN43880 9 modules for rail mountain, there are 4 controllers with universal input and a wide range of outputs, both analogue for ritransmission and control and relay for actuation on systems with alternating current. On a single Plug type connector and on extractable terminals there is an RS232 port and an RS482 port, both with Modbus RTU - Slave protocol.

To simplify the logic on the network nodes, the device can retrieve pre-programmed functions for servo-valve control and management of alarms or input analogics, as well as the clock function with back-up.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Modbus RTU, RS232
Type	network
Applications	current
Number of inputs/outputs	4 analog inputs 2-O
Mounting	standard integrated
Other characteristics	slave relay universal
