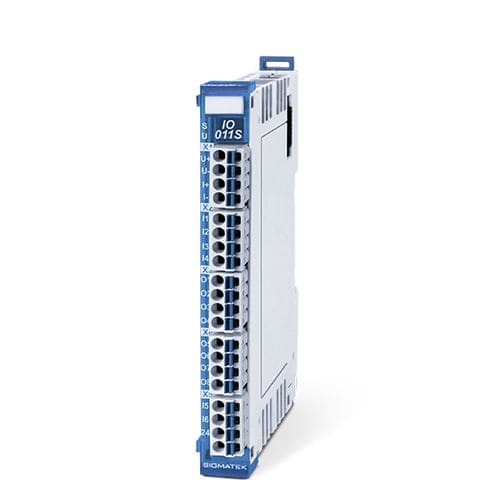

6 digital inputs (+24 V DC/3.5 mA)
Input delay: 1 µs
8 digital short circuit proof outputs (+24 V DC/0.5 A/backreadable)
1 analog input (±10 V DC/16 bits)
1 analog current input (0-20 mA resp. 4-20 mA/16 bits)

For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

Digital Inputs
Type -
+24 V DC

Number -
6

Input voltage -
+24 V DC (+18-30 V DC)

Input current -
3.5 mA at +24 V

Input delay -
typically 1 µs

Digital Outputs
Type -
+24 V DC

Number -
8

Configuration -
back-readable

Short-circuit proof, current limited -
Yes

Max. load current/channel -
0.5 A

Max. total current -
4 A

Analog Inputs
Type -
±10 V DC

Number -
1

Resolution -
16 bits

Measurement range -
-10 ... +10 V / 0 ... +10 V

Measurement precision -
±0.3 % of the maximum measurement value

Conversion time for all channels -
Speed mode: 15.26 µs

Cable break monitor -
Yes

Hardware filter -
typically 1 kHz, low pass 3rd order system

Software filter -
configurable, low pass 1st order system

Analog Inputs
Type -
Current

Number -
1

Resolution -
16 bits

Measurement range -
0-20 mA / 4-20 mA

Measurement precision -
±0.5 % of the maximum measurement value

Conversion time for all channels -
Speed mode: 15.26 μs

Cable break monitor -
Yes

Hardware filter -
typically 1 kHz, low pass 3rd order system

Software filter -
configurable

Parameter Name	Parameter Value
Signal type	digital, analog
Applications	current
Number of inputs/outputs	16-I/O 16-channel 8 digital outputs multi-channel 6-channel digital input
Mounting	DIN rail
Other characteristics	compact configurable
