Brand: GCAN
Model:
GC-1008~GC-8012
Application:
Input and output modules

Type - Characteristic - Signal - Channel

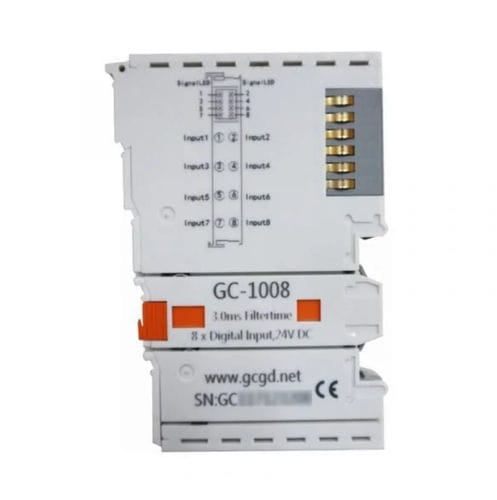

Digital input - GC-1008 - Digital input (PNP) - 24V DC - 8-channel
GC-1018 - Digital input (NPN) - 24V DC - 8-channel
GC-1502 - Counter（200kHz max） - – - 2-channel
Digital output - GC-2008 - Digital output (PNP) - 24V DC - 8-channel
GC-2018 - Digital output (NPN) - 24V DC - 8-channel
GC-2204 - Relay output - – - 4-channel
GC-2302 - PWM （20Hz~200kHz） - – - 2-channel
Analog input - GC-3604 - Voltage input, 16 bits - -5~+5V - 4-channel
GC-3624 - Voltage input, 16 bits - -10V~+10V - 4-channel
GC-3644 - Current input, 16 bits - 0-20mA - 4-channel

GC-3664 - Voltage input, 16 bits - 0~+5V - 4-channel
GC-3674 - Voltage input, 16 bits - 0~+10V - 4-channel
GC-3804 - 2-wire PT100, 16 bits - Thermal resistance - 4-channel
GC-3814 - 2-wire PT1000, 16 bits - Thermal resistance - 4-channel
GC-3822 - 3-wire PT100, 16 bits - Thermal resistance - 2-channel
GC-3832 - 3-wire PT1000, 16 bits - Thermal resistance - 2-channel
GC-3844 - K type thermocouple - Thermocouple - 4-channel
GC-3854 - S type thermocouple - Thermocouple - 4-channel
GC-3864 - T type thermocouple - Thermocouple - 4-channel
GC-3874 - J type thermocouple - Thermocouple - 4-channel
Analog output - GC-4602 - Voltage output, 16 bits - -5V~+5V - 2-channel
GC-4622 - Voltage output, 16 bits - -10V~+10V - 2-channel
GC-4642 - Current output, 16 bits - 0-20mA - 2-channel
GC-4652 - Current output, 16 bits - 4-20mA - 2-channel
GC-4662 - Voltage output, 16 bits - 0~5V - 2-channel
GC-4672 - Voltage output, 16 bits - 0~10V - 2-channel
GC-4674 - Voltage output, 12 bits - 0~10V - 4-channel

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	Ethernet, Modbus RTU, Modbus TCP, RS-485, RS-232, Modbus, CANopen
Applications	automation PLC temperature
Number of inputs/outputs	with relay output 8-channel 4-channel
Mounting	DIN rail
Other characteristics	compact
