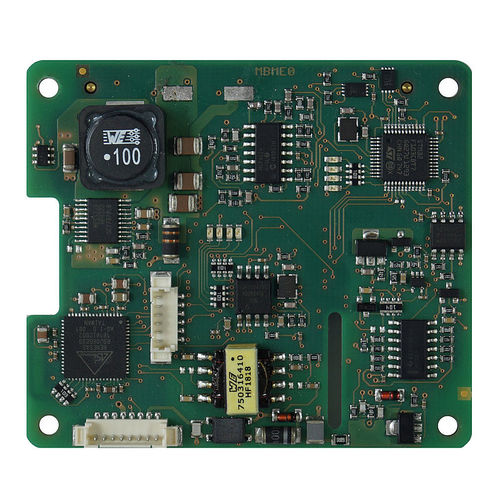

ASi-5/ASi-3 Master PCB Module for Raspberry Pi, 1 ASi-5/ASi-3 master, Raspberry Pi connection via sockets (2x20 poles), ASi connection via PicoBlade wiring pins (8 poles), duplicate address recognition, ASi fault detector
The ASi-5/ASi-3 Master PCB module for Raspberry Pi is
intended for integration into a Raspberry Pi. The module meets
ASi-5 and ASi-3 specifications and thus supports all new ASi
functions.
ASi Master functions are configured and diagnosed via the
Raspberry Pi.
Type - Raspberry Pi
Number of ASi networks, number of ASi Master - 1 ASi network, 1 ASi-5/ASi-3 Master
Diagnostic and configuration interface - -
Recognition of duplicate ASi addresses - yes
ASi fault detector - yes

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	ASi
Type	network
Mounting	PCB
Other characteristics	programmable
