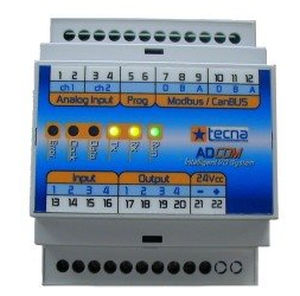

ADCOM is a versatile interface which provides up to 2 analog inputs and 4 digital I/O.
ADCOM can be used in distributed automation systems based on the Modbus protocol or on the CANopen standard.
It is also possible to communicate with ADCOM by using a simple 2 wire digital interface wich make it an ideal expansion for any PLC, even the most simple.
Based on the selected model, ADCOM can directly read the temperature from NTC, PTC, PT100 or PT1000 probes and also from J, K or S termocouples.
Alternatively, it is possible to read general sensor like 0-10V, 0-1V, 4-20mA or a load cell.
The digital inputs may be configured to read standard pulse flow sensors.
ADCOM directly calculates the instantaneous flow in l/min and makes available also a liter counter that could be fully managed by the communication interface.
ADCOM can also be expanded with our TRH10 interface for temperature and relative humidity reading
Compact size DIN mounting
Compatible with any commercial PLC
No need for PLC analog inputs
RS485 Serial interface with Modbus protocol
CAN interface with CANOpen protocol
Digital 2 wire interface
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
analog
|
| Bus |
CANopen, Modbus
|
| Type |
distributed
|
| Applications |
PLC
|
| Number of inputs/outputs |
|
