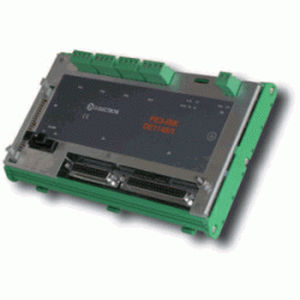

The RIK board may be used to connect a personalized machine control panel to the CNC Z32 through a single and easy optical fibre connection.

Connected with Z-Link optical fibre bus
Maximum distance with the next/previous Z-Link peripheral: 30m
2 Handwheel INPUTS
4 Analog INPUTS (0-10V 12 bit) for potentiometers
24 INPUTS 24Vdc
8 OUTPUTS 24Vdc 500mA
18 INPUTS 5Vdc (buttons)
18 OUTPUT 5Vdc 10mA (leds)

Parameter Name	Parameter Value
Signal type	analog
