About

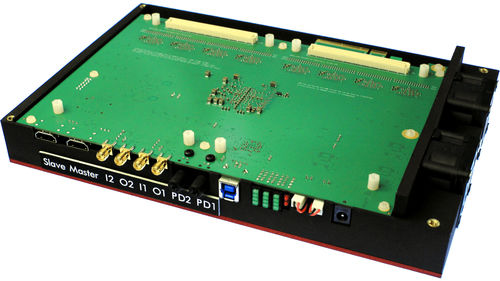

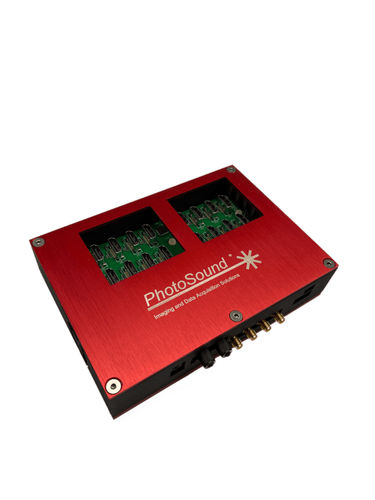

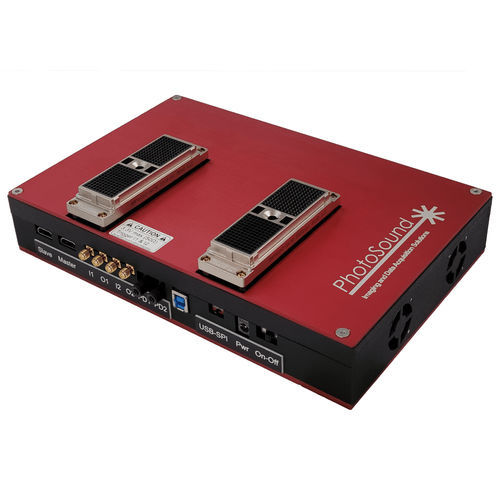

The LEGION ADC unit offers fully parallel operation for simultaneous data acquisition from all channels without multiplexing in an ultra-compact external USB enclosure. Each unit supports 128- and 256-element detectors. Up to four ADC units can be operated in parallel to enable 1024 data acquisition channels. If more channels are desired up to 16 units can be operated in parallel with the use of PhotoSound’s synchronization hub (LEGION Hub) leading to an unprecedented 4096 channels. Incoming analog signals can be amplified on each channel by a fixed 40 dB using optional, integrated preamplifiers. Upon special request, the linear probe is available without housing for the end-user to integrate custom photoacoustic arrays.
FEATURES
Compact, durable and light enclosures with integrated cooling fans
Streaming ADCs for continuous data acquisition with no buffering or multiplexing

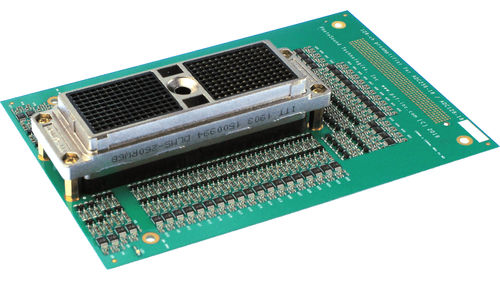

Each analog channel has integrated amplifier with digitally controlled gain
Acoustoelectrics
Generate trigger output at defined rate or repetition of external trigger input with programmed delay
Connect up to four units in parallel and acquire more data at fast data acquisition rates
Sync external hardware with data acquisition using electronic or optical IN/OUT ports
Standalone control software based on MATLAB, open SDK written in C# and access to raw RF data
Applications
Photoacoustics (Optoacoustics)
X-ray Induced Acoustics
Thermoacoustics
Acoustoelectrics
3D Tomography
Photoacoustic Microscopy (PAM)
2D Imaging
Multi-Sensor Monitoring
Non-Destructive Testing
Transducer Manufacturing
Low Voltage Ultrasonics
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
analog-digital
|
| Other characteristics |
|
