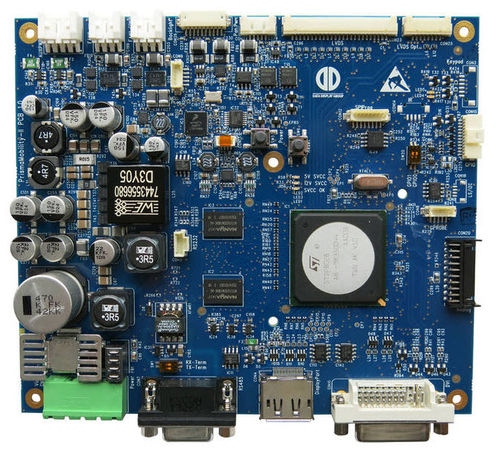

Our PrismaMOBILITY-II is a powerful TFT controller board with DVI-I/DisplayPort input and controls all common TFT display up to a resolution of 1920x1200. Its wide operating temperature range of -20...+75°C is perfect for outdoor applications.

PrismaMOBILITY-II's RS485 interface allows for a comprehensive remote diagnostics e.g. monitoring power, temperature and fan function. Due to outstanding EMI properties, the PrimsaMOBILITY-II fulfills the test standard EN55022 witout electromagnetic shielding.


Special Features:

Resolution up to 1920x1200 (progressive and interlaced)
Input:
DVI-I (VGA/DVI/HDMI1.3a/HDCP), optional Sync on Green (SOC)
Display Port
CVBS, S-Video, component Video/YPbPr
output: single and dual LVDS
Integrated supervision and control features (compatible to ARCB)

Parameter Name	Parameter Value
Type	analog video
