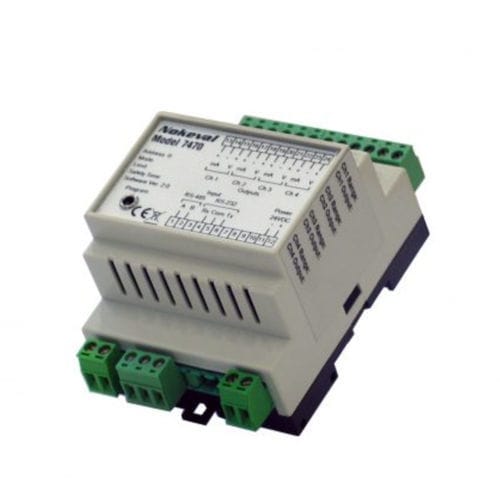

4-channel transmitter 7470 with serial data RS-485/232 input

• 4 output channels 0..20mA 4..20mA 0..5V and 0..10V
• Serial data input RS-232 and RS-485
• Simple Nokeval SCL protocol
• Configuration with a hand held programmer 6790 or by MekuWin program via serial bus
• DIN-rail mounting (35mm)
• Power supply 18..28 VDC

The transmitter 7470 provides an economical means of converting digital data to analog signals, mA / V, and transmitting them to four field instruments. Configuration is simple by MekuWin program or the general purpose hand held programmer 6790. The transmitter uses the simple
Nokeval SCL protocol. One serial data bus accepts 31 7470 transmitters or other serial instruments, that is 124 output channels. Typical applications are PC-based
programs or PLC.

Parameter Name	Parameter Value
Type	analog digital
Bus	RS-232, RS-485, RS422/RS485
Other characteristics	isolated
