About

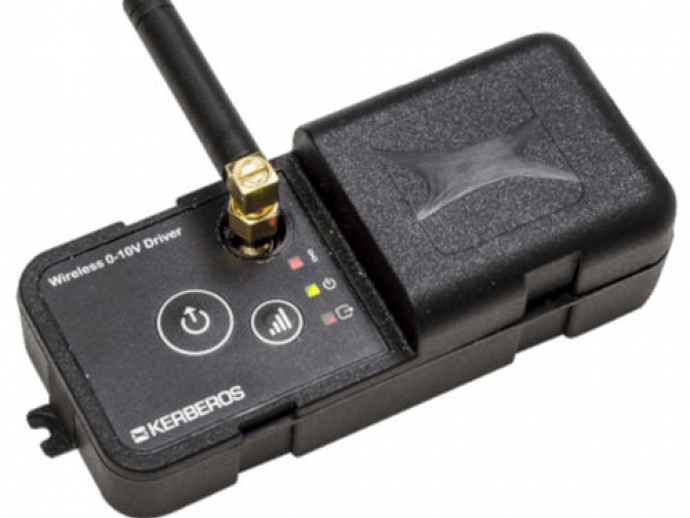

The KET-DIM-100.NR is a wireless analogue control module that enables the remote control of lamps, pumps, motors and other devices equipped with a 0-10 V control input. Its small size allows it to be used inside luminaires such as ceiling lights and street lamps. IP40 degree of protection without internal resin coating. The integrated diagnostic function allows the load to be monitored and any malfunctions to be detected. The integrated repeater function and amplified radio allow the X-Monitor network to be extended easily and economically.
GENERAL SPECIFICATIONS
Degree of protection - IP40
Operating temperature -15÷+70 °C
CONTAINER
Dimensions - 100x45x30mm (WxHxD)
Fixing - Wall
Material - Black nylon
POWER SUPPLY
Power Supply Voltage - 230VAC (50-60Hz)
Consumption - 1.5 VA
Connector Type - Device supplied with pre-sheathed cable terminals
DIGITAL INPUTS
Digital Inputs - 1 for dry contact with drive, alarm, etc. functions.
ANALOGUE OUTPUTS -
Output Type - Remote control of devices equipped with a 0-10 V control input
RADIO SECTION -
Supported Protocols - X-Monitor Protocol (X-MP) / IEEE 802.15.4
Transmission Frequency - ISM 2.4 GHz band
Output Power +3÷+20 dBm
Sensitivity -104 dBm
Antenna Type - RPSMA connector, 90° antenna included
Maximum Distance (Free Air) - Over 1000m
FUNCTIONALITIES -
Radio Signal Indicator - Integrated (LinkQuality)
Output Power Adjustment - Keypad and Remote
INTEGRATED FUNCTIONS -
Services - Supported load diagnostics and apparent energy metering in kW/h
