Once the tips are sealed, it is essential to make sure the ampoule is free of leaks
The Inspection module is one of modules in the basic set recommended for every production line.
It can also be chosen as a complementary module for use with VACFILLER models 100, 200, and 300.
It fits perfectly into a fine-tip ampoule filling line.
Capacity
Up to 300 crystallizing dishes per hour (measured on mains water)
Customizable filling line
With four filler models and a wide range of complementary modules, each production line is precisely matched to the customer’s specific needs.
Small footprint
Ergonomic and compact, VACFILLER machines can easily be integrated into all types of laboratory.
Compliant with BPF and FDA specifications
The whole of the VACFILLER range complies with BPF (French good practice in manufacturing) and FDA requirements for pharmaceutical industry products and dietary complements.
What is the purpose of the inspection module?
The Inspection module automatically verifies the ampoules for leak-tightnessafter sealing.
It is easily installed between the Sealer and Washer on an ampoule filling line.
How does it work ?

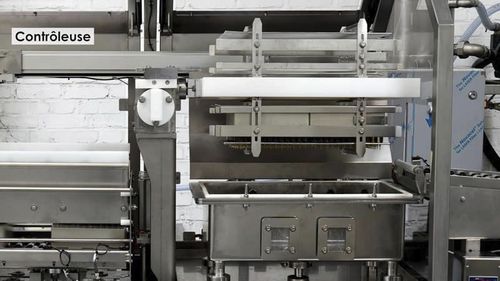

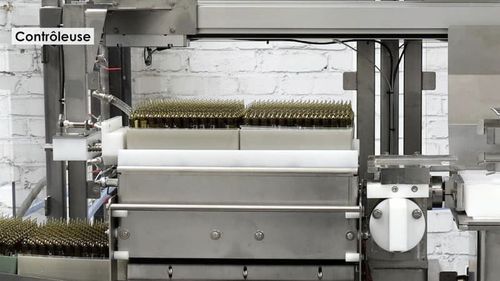

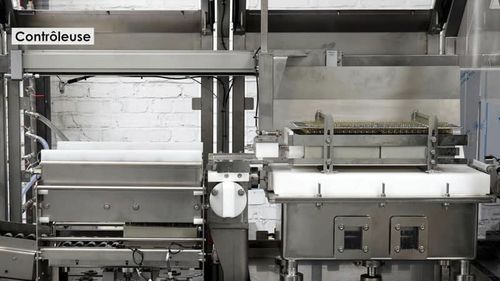

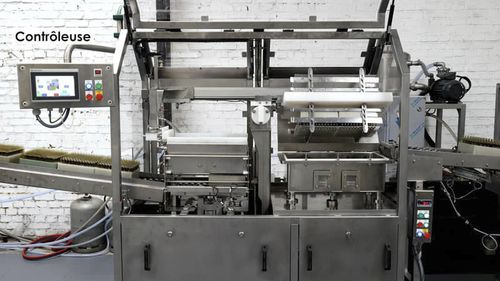

With a standard construction based on Vacfiller 300, this machine loads two crystallizer dishes into the inspection tank.
The inspection operation then takes place by subjecting the ampoules to a vacuum.
Ampoules with bad seals end up partly emptied.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
ampoule
|
| Sector |
for the food industry, for the pharmaceutical industry, for the packaging industry, for the cosmetics industry
|
| Other characteristics |
automatic
|
