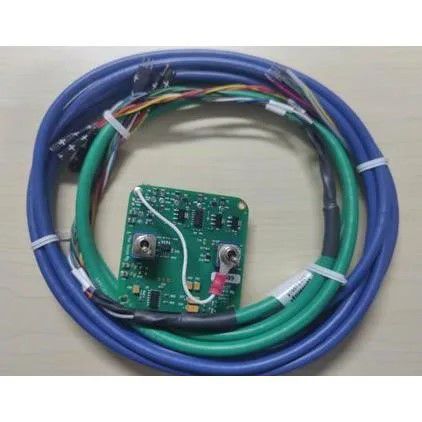

The model 83162 is a precision, two‐channel signal
conditioning card for use with all Jewell miniature tilt
sensors. Powerful electronics generate balanced AC
sensor excitation for up to two tilt channels (X and Y),
then amplify, rectify and filter sensor response to
produce a high‐level DC output signal. Output is ±8
VDC single‐ended (±16 VDC differential).
Units conveniently come with two switchable gain and
filter settings (high/low; on/off) for added signal
processing flexibility. The 83162 also includes an
amplifier for one LM35 temperature sensor, and will
drive tilt and temperature signals over 1000m cable
lengths. All units include calibration when ordered with
Jewell Instruments miniature tilt sensors. Use the
model 83162 for peak performance from our 755‐,
756‐, or ceramic tilt sensor packages.

Parameter Name	Parameter Value
Options	amplifier miniature
