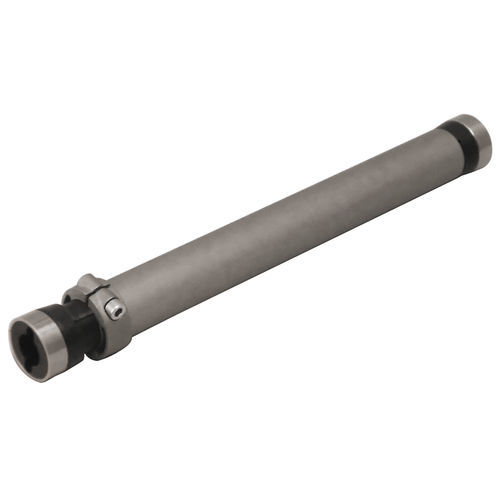

Use:fitted on the angular idler pins, it transmits synchronised and not aligned movement to 2 positioners.

State of supply 1 fixed sleeve polyamide body, 1 removable sleeve polyamide body, 1 stop ring for removable sleeve in shot-peened Zamak, 1 stiffening ring in AISI 304 stainless steel, 1 aluminium tube.

Standard pack: 1 piece.

Parameter Name	Parameter Value
Material	aluminum
Type	telescopic
Product applications	transmission
Torque (Nm)	20 - 20
Diameter (mm)	28 - 28
Length (mm)	1000 - 1000
