About

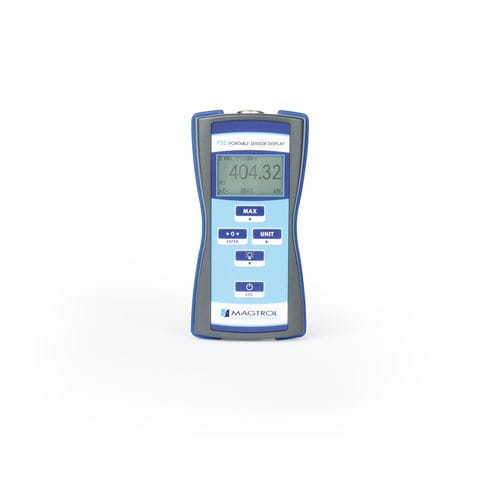

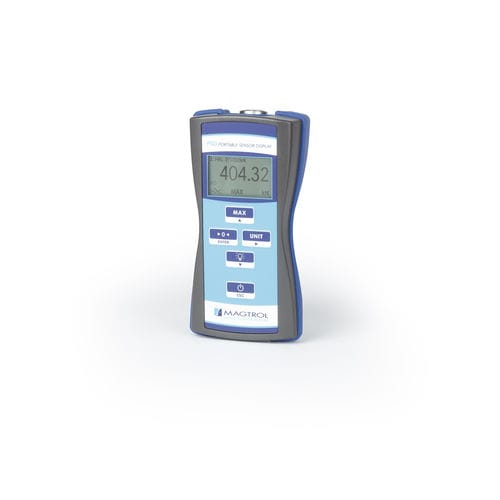

The PSD Portable Sensor Display from Magtrol is a very compact, light and easy to use device. This amplifier can process sensor strain gauge signals ±0.3…5mV/V. High measuring
accuracy, paired with fast measuring rates allow an internal resolution of 22 bits at 2mV/V. It also stores the adjustment data, sensor designation and physical unit. Functions, such as TARE, recall of min.-max. value,... are available during the measurement.
The device is powered by 3 AA batteries or via its USB Mini-B port. In order to increase its duration of use, the PSD integrates an automatic standby mode which is activated when the device is not used.
The PSD Display can be used with many sensors such as force sensors, load cells, torque sensors, anchor sensors or any other type of strain gauge transducers.
This portable measurement and display system is particularly suitable in cases where a fixed installation is difficult or irrelevant, such as:
▪ Maintenance of installation
▪ Intermittent monitoring
▪ Laboratory, Research and development,...
▪ Installation or monitoring in civil engineering,...
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Format |
compact
|
| Applications |
|
| Other characteristics |
|
