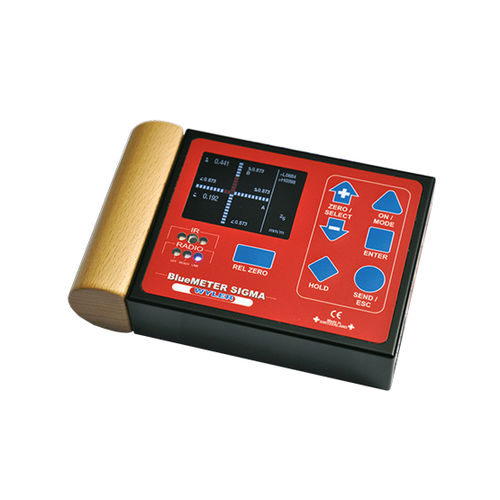

BlueMETER SIGMA


BlueMETER SIGMA is a further enhancement of the well known BlueMETER, and has been developed as an intelligent display unit for the electronic inclination measuring instruments

BlueLEVEL
BlueCLINO and BlueCLINO High Precision
MINILEVEL NT and LEVELTRONIC NT (both by means of cables only)
CLINOTRONIC PLUS
ZEROMATIC
ZEROTRONIC sensors
Besides the excellent measuring accuracy, the measuring instruments BlueLEVEL, BlueCLINO, CLINOTRONIC PLUS and ZEROTRONIC sensors supply a fully digital signal for transmitting these values over long distances without any loss of quality.

BlueMETER SIGMA is
• a display unit
and
• an interface between instrument and PC/laptop

The following new functions and features distinguish the BlueMETER Sigma from the BlueMETER:
• large and very easy-to-read color display
- Various color profiles can be Chosen
- Various display methods are available: the new graphical 2D-display allows very useful new applications!
• Measured values of up to four instruments can be displayed simultaneously. Users can choose which instrument
is displayed as A, B, C or D.

• Furthermore, the following options are available:
- Display of the difference of two instruments (A-B)
- Display of the difference of four instruments (A-B and C-D). The values can then be displayed as a 2D-graph:
A-B for the X-axis, and C-D for the Y-axis.
• The connectors for the cables are now on the right hand side of the instrument, allowing adjusting the
instrument to the optimal reading angle with a built-in bracket on the back of the BlueMETER SIGMA.

Parameter Name	Parameter Value
Type	alphanumeric
Applications	position
Other characteristics	electronic
