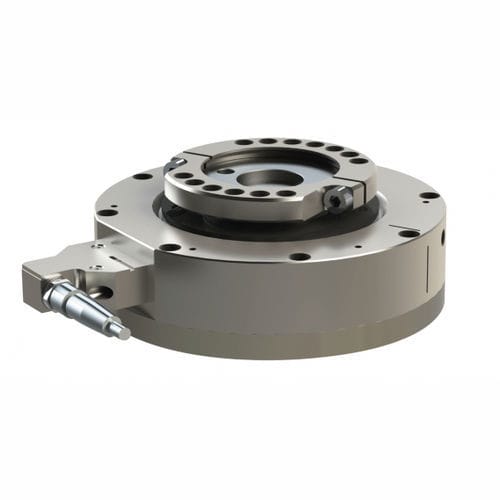

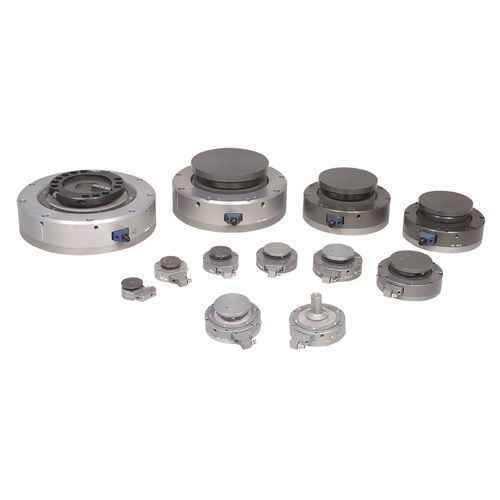

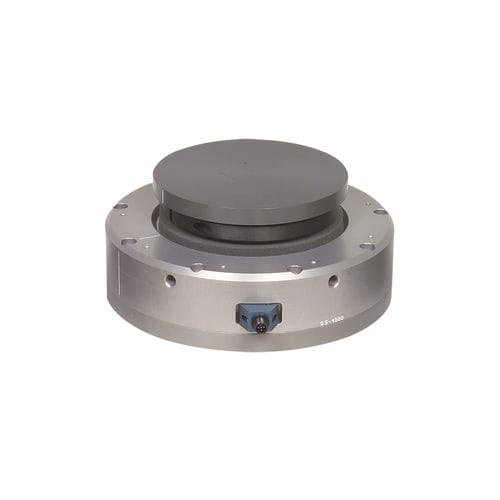

The QS is a dynamically variable collision sensor that operates on an air pressure system – and provides excellent protection in machine load/unload robotics applications.

A regulated air supply provides positive, variable pressure to hold the collision sensor rigid during normal operation. At impact, the air chamber seal is opened, immediately signaling the system controller.

ADVANTAGES

Dynamically variable trip points
Permanent repeatability
Detects angular, rotational and compressive forces

QS-AW and QS-7500 are supplied with screen collar
*From robot adaptor interface plate
**Varies with air pressure and speed of impact
Operating pressure 1 – 6 bar (from QS-7 to QS-400) – 1.4 – 6 bar (from QS-800 to QS-7500)
Ambient temperature 0-70°C (from QS-7 to QS-AW) – 0-100°C (from QS-400 to QS-7500)
Sound emissions (sound pressure) ≤ 70 db (A) in each direction

Parameter Name	Parameter Value
Other characteristics	air-operated automated loading/unloading for robots rotational
