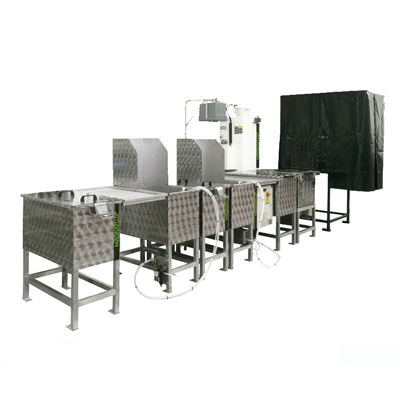

ZA-28
Penetrant Processing Inspection Equipment
ZA-28 is a high-performance, integrated processing/inspection system for fast and reliable manual penetrant testing. It comes in three models, each designed for a specific testing method. Its modular design varies with different penetrant materials.
ZA-28W - Water-Washable Method - These are the simplest units because water can be used directly to wash excess penetrant from parts without additional steps.
ZA-28E - Post-Emulsified Method - These units can locate extremely shallow flaws, but they require an extra processing step - applying an emulsifier - to make the penetrant washable.
ZA-28H - Hydrophilic Method - These units deliver the highest sensitivity, but require an additional processing station for pre-rinsing parts.

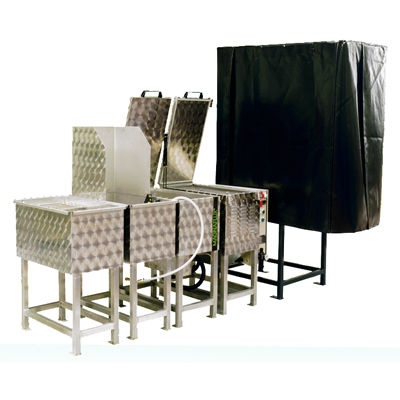

ZA-37
Penetrant Processing Inspection Equipment
ZA-37 is a high-performance, integrated processing/inspection system for fast and reliable manual penetrant testing. It comes in three models, each designed for a specific testing method. Its modular design varies with different penetrant materials.
ZA-37W - Water-Washable Method - These are the simplest units because water can be used directly to wash excess penetrant from parts without additional steps.
ZA-37E - Post-Emulsified Method - These units can locate extremely shallow flaws, but they require an extra processing step - applying an emulsifier - to make the penetrant washable.
ZA-37H - Hydrophilic Method - These units deliver the highest sensitivity, but require an additional processing station for pre-rinsing parts.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
by air injection
|
| Operational mode |
manual
|
| Applications |
for production
|
| Type |
for NDT
|
| Other characteristics |
fast
|
