Rated Voltage : 24V AC/DC

Operating Temperature : -30℃ ~ +50℃

Storage Temperature : -40℃ ~ +80℃

Noise : 36dB(1m)

Operating Life : 40S/90°

Frequency : 50/60H

Torque : 5 N.M

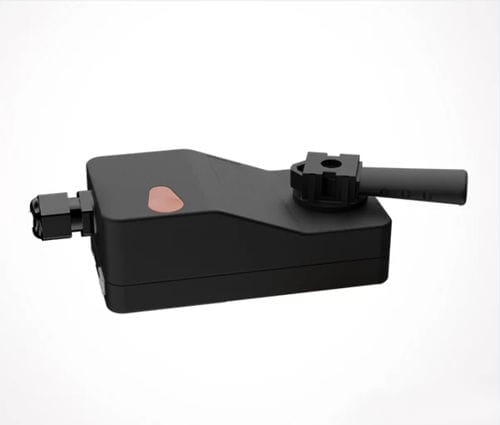

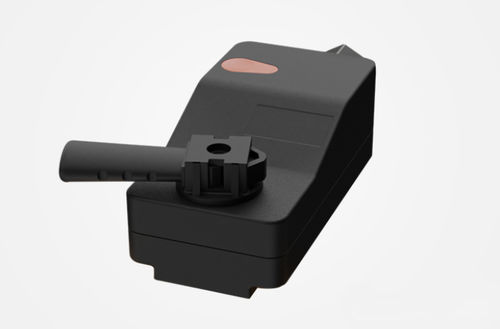

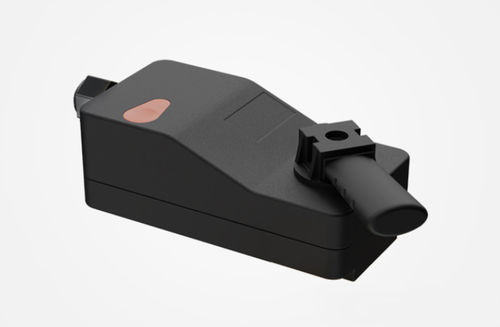

Compared with similar products on the market, this air damper actuator drive system that adopts an integrated design is smaller in volume, more convenient in installation, more simple in structure and of high reliability and large load capacity. The gearbox of the control valve drive system adopts a plastic housing to reduce its weight and powder metallurgical gears inside to ensure its stability and stepper motors as drive motor to reduce noise.

Parameter Name	Parameter Value
Motor type	stepper AC
Type	spur
Voltage (V)	24 - 24
Torque (Nm)	1 - 5
Performance	low-noise
Product applications	for actuators for air conditioning
Operating temperature (°C)	-30 - 50
