About
Voltage : 3-24V
Load Current : 250mA (customizable)
Rated Speed : 5-2000rpm
Capacity : 0.5-50W
Drive Motor : Stepper motor (customizable)

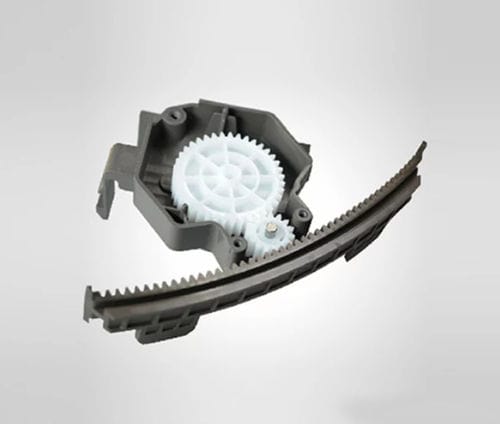

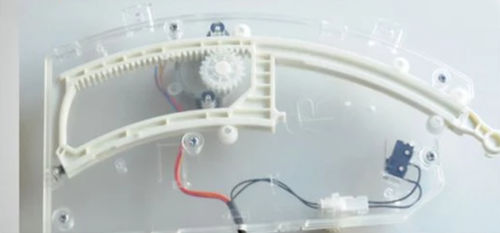

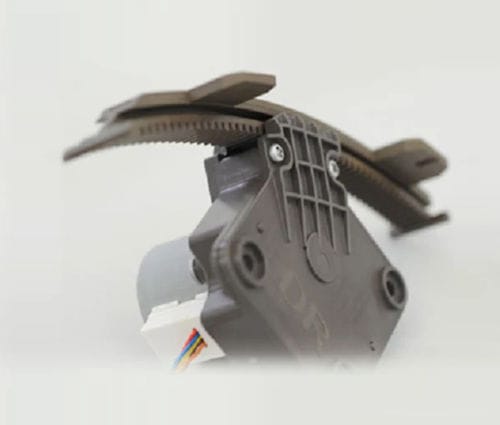

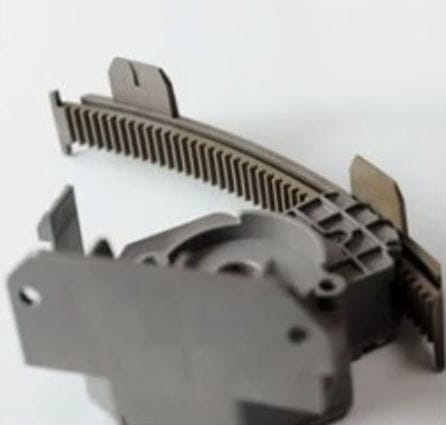

The gearbox for air conditioner front panel opening is developed and designed for designated customers. Below is only the showcase of air conditioner front panel transmission solution. Besides selling standard products, ZHAOWEI can provide design, research and manufacture for customers based on their specific needs as well.
Feature:
- Use gearbox in opening front panel of the air conditioner as a new attempt.
- Low-noise. The gear motor for AC front panel makes it possible for opening the front panel quietly and steadily.
- Large opening angle. It enables the front panel to open at a larger angle by adjusting the gear specifications, like torque, reduction ratio.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
spur
|
| Shaft orientation |
coaxial
|
| Performance |
low-noise
|
| Other characteristics |
air conditioner
|
| Rotational speed (rpm) |
5 - 2000
|
| Power (W) |
0.5 - 50
|
| Gear ratio (unit) |
5 - 1500
|
