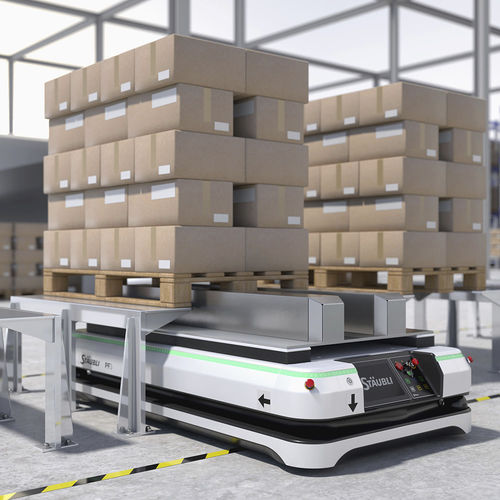

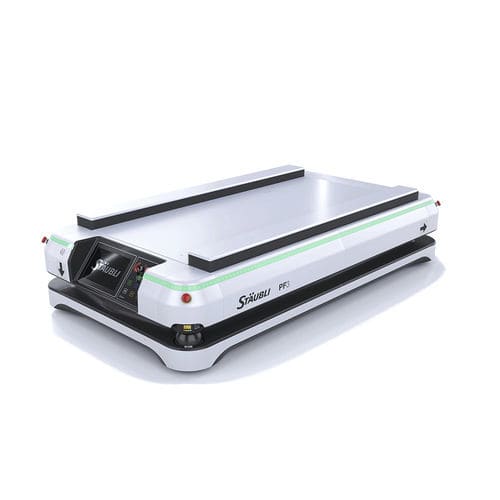

Stäubli designs and manufactures premium AGV (Automated Guided Vehicle) solutions. The new Stäubli 3-ton AGV platform, PF3, opens up new industrial applications.
The Stäubli PF3 offers outstanding performance. Its ultra-compact design allows it to carry and lift up to 3-ton payloads with high positioning precision (+/-5 mm). Safe and low profile, the PF3 allows future-proof production and smart workflow.

Ultra compact design
• 3-ton payload
• Dimension (mm): 1750 x 970 (L x W)
• Height without lift unit 350mm
• Height with lift unit 400mm

Easy to integrate
• Electrical and mechanical interface for third party add-ons
• Standard software interfaces

Safety first
• Human safety scanner
• 5x emergency stop buttons
• Status communication with LED strip
• Collision avoidance

Industrial-proof components
• Unique drive unit
• Secured supply chain
• Built to last

Easy maintenance
• Sideway access to components
• Quick change of critical parts in minutes

TCO - Long-lasting design
• Up to 10.000 recharging cycles
• Super fast charging up to 80A
• Very robust & reliable technology

Add-ons:
• Lift unit (stroke +100mm) - Height: 400 mm
• Lift unit (stroke +100mm) + EU-pallet adaptor - Height: 570 mm
• Lift unit (stroke +100mm) + US-pallet adaptor - Height: 465 mm

Accessories:
• Table
• EU-pallet station
• US-pallet station
• Remote control

Parameter Name	Parameter Value
Applications	assembly handling for warehouse transfer for loading for pallets for unloading for the automobile industry for the beverage industry for paper rolls for the food industry for heavy loads for the semiconductor industry for clean environments for the packaging industry
Specifications	electric for heavy loads laser guided multidirectional collaborative optic guiding with platform
Load (kg)	0 - 3000
