The platform AGV for the largest loads and maximum flexibility

TECHNICAL DATA :

Payloads: 0 kg – 500 000 kg

Dimensions (W x L): 1,0 x 1,7 m – 3,5 m x 15 m (additional sizes available upon request)

Drive concept: Patented Stäubli WFT drive unit with electric drive

Number of axles driven: 1 to 16 (additional support wheels possible)

Energy supply: 48 V lithium-ion batteries with integrated charging device or external charging station

Method of operation: Manual and semi-automatic operation with radio remote control
Fully automatic with a control system
Coupling operation

Track guidance: Different options and combinations are possible, e.g., laser scanners, transponders, cameras and hybrid systems

Place of use: Indoors / outdoors like industrial floors, pavement, possible to drive over thresholds
Overall efficiency factor exceeds 80%

Available options
• Carrier units
• Lifting devices
• Means of conveyance
• Manipulators
• Inductive charging
• Remote maintenance

MODULAR AND PRECISE

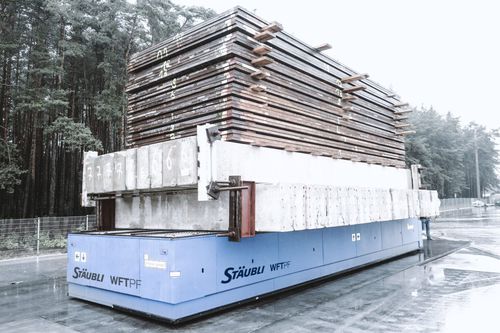

• Reliably move loads of up to 500,000 kg
• Flexible dimensioning through modular construction
• Batteries designed based on requirements
• Quiet driving mode, even under high load

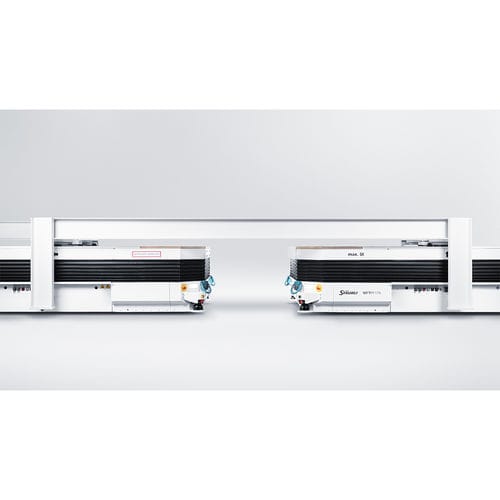

• Coupling several vehicles makes it possible to transport bulky goods

HIGHLY EFFICIENT
• Custom automation
• Electric drive with integrated brake energy recovery (recuperation)
• No separate steering drive, resulting in low energy consumption
• Emissions-free, nearly silent locomotion
• Minimum maintenance and operating costs

Parameter Name	Parameter Value
Applications	for warehouse transfer
Specifications	electric for heavy loads with platform
Load (kg)	6000 - 450000
