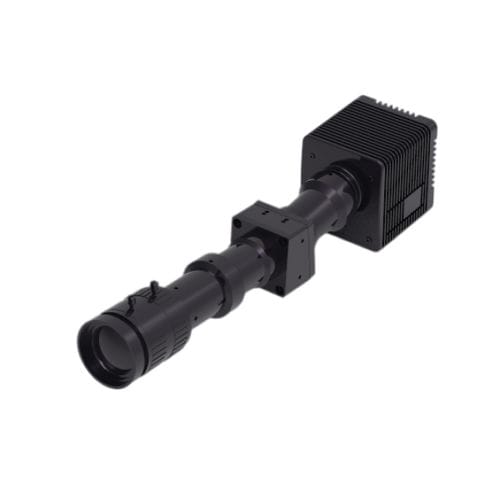

ATH1010-17 is compact and light SWIR hyperspectral camera fit to be mounted to the drone. With features of high spatial and spectral resolution, wide field imaging.
ATH1010-17 is made of two parts, imaging camera and hyperspetrometer applied transmission grating technology and excellent aberration.
ATH1010-17 SWIR hyperspectral camera uses high resolution & performance cooled InGaAs CCD with 640×512 pixels or 1280×1024 pixels, clear imaging and low noise. ATH1010-17 SWIR hyperspectral camera shape long tube fit to multi-rotor drone. But ATH1010-17L shape bending optical bench design can fit more to fixed wing drone or short landing gear drone.
ATH1010-17 SWIR hyperspectral camera can fit to in field measure spectral information of plants, water, soils, the obtained spectrum used for analysis. The physical and chemical properties of plants build modeling with spectral database to be applied to plants classification, plants growth etc.
With compact design, high resolution, push broom imaging, this SWIR hyperspectral camera can be extended to many application in field, including rotary and indoor scan system, mounted on the drone for remote sensing.

Wavelength：900~1700nm
Spectral resolution：3.3~4.8 nm
Optical bench：PGP design
Max. FOV：31.7°
Min. FOV：1.2 mrad
Excellent imaging quality
Advanced algorithm for impression images
Compact size
Light weight < 1450g
No mechanical scan improve reliability

Geology and mine exploration
Agricultural growth and output appraisal
Forestery and plant disease monitor
Fire prevention monitor
Coastline and sea environment monitor
Pasture grass production and growth monitor
Lake and river monitor
Remote sensing teaching & research

Parameter Name	Parameter Value
Applications	agriculture fire detection for military applications
Technology	hyperspectral
Spectrum	SWIR, hyperspectral
Sensor	CCD
Other characteristics	indoor InGaAs wide field push rotary cooled compact fixed
