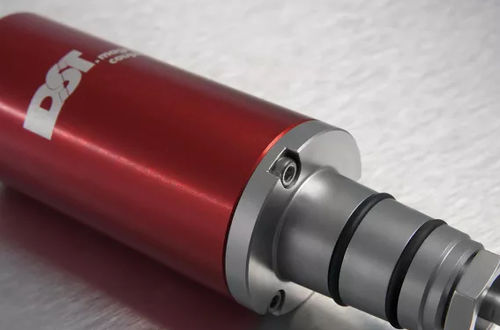

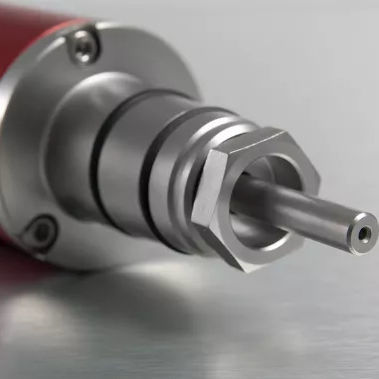

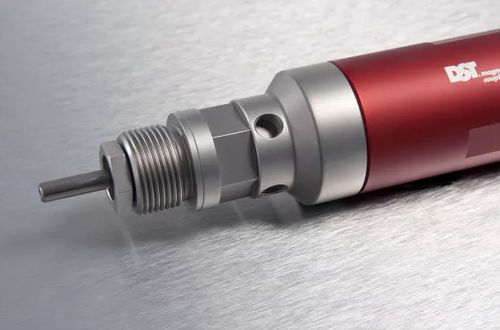

DST agitator drives are available as overhead drive or bottom mounted drive.

An agitator drive equipped with DST permanent magnetic coupling hermetically seals the agitator, thus preventing any escape of hazardous gases or the ingress of contamination during agitation.

Advantages overhead drive
Design features for system monitoring: temperature, speed and leakage
High temperature applications with ceramic ball bearings
Drives with cooling and lubrication options

Advantages bottom mounted drive
Excellent surface texture
Material certification in the pharmaceutical and food industries
Speed monitoring

Torque*
Overhead drive
Standard: 1 – 1,200 Nm
Customer-specific: 0,1 - > 25,000 Nm
up to 500 Nm complete unit including bearing with connection to the tank
> 500 Nm possible in cooperation with our customers

Bottom mounted drive
0.3 – 1,500 Nm
Up to 150 Nm with bearing
> 150 Nm possible in cooperation with our customers

*depending on model

Materials
Standard: 1.4435 and 1.4404
Stainless steel: 1.4301, 1.4401, 1.4571, 1.4539, 1.4980
Hastelloy: 2.4602 (C-22), 2.4610 (C-4), 2.4819 (C-276)
Titanium: 3.7035 (Grade 2), 3.7055 (Grade 3), 3.7165 (Grade 5)
Many other special materials on request.

Applications
Overhead drive
Autoclaves
PU industry
Chemical industry
Laboratory industry
Bottom mounted drive
Food industry
Pharmaceutical industry
Process industry
