MATERIAL
Special glass-fibre reinforced polyamide based (PA) SUPERtechnopolymer, black colour, matte finish.

STANDARD EXECUTIONS

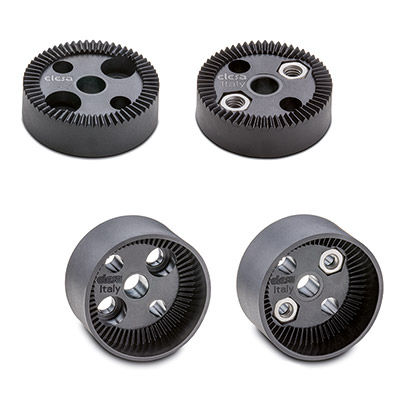

Central plain pass-through hole and two holes for pins.
- RDB-F: front mounting by means of two holes for cylindrical-head
screws.
- RDB-CF: integral with case, front mounting by means of two holes
for cylindrical-head screws.
- RDB-B: rear mounting by means of two pass-through holes and two
stainless steel hexagonal nuts (included in the supply).
- RDB-CB: integral with case, rear mounting by means of
two pass-through holes and two stainless steel hexagonal
nuts (included in the supply).

FEATURES AND APPLICATIONS
The toothed clamping elements RDB-F and RDB-B, coupled between
them or with the executions RDB-CF or RDB-CB, allow to lock the position of two components rotating around an axis.
The locking angle is adjustable with a pitch of 6 °.

ACCESSORIES ON REQUEST
AISI 301 stainless steel push springs facilitating the detachment of the
toothed clamping elements.

Parameter Name	Parameter Value
Other characteristics	adjustable stainless steel toothed
