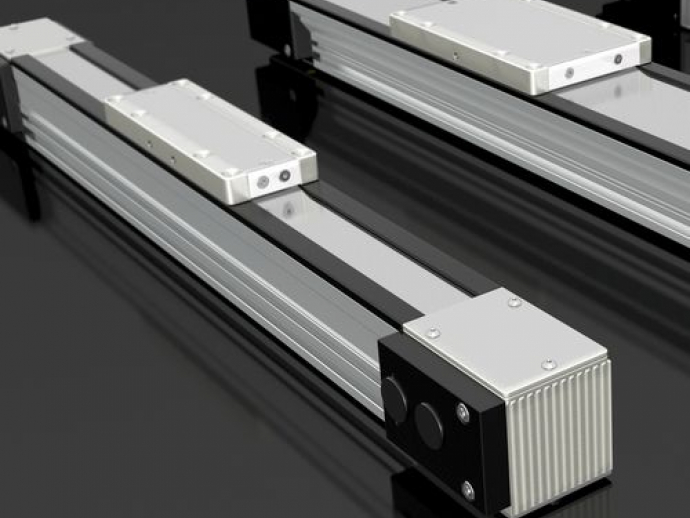

Spindle, toothed belt or direct drives with metal strip cover

The linear actuators with metal strip cover are an extension of the standard programme. The metal strip offers protection against incoming dirt or particles and prevents releasing particles into the environment of the linear unit. A corrosion-resistant steel with a smooth surface is used. An excerpt of the linear drives was developed by the Fraunhofer Institute for Manufacturing Engineering and Automation (IPA) and certified (DIN EN ISO 14644-1). The exact test conditions and the design can be found in the certifications.

By using this metal belt cover, the linear unit is encapsulated as far as possible. Possible applications are, for example:

- Clean rooms according to ISO 14644 from class 1 - 8
- GMP cleanrooms for pharmaceuticals & medical technology
- Painting lines or dusty ambient conditions
- Applications where moving parts have to be covered

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	screw spindle timing belt direct-drive
Material	steel
Voltage (V)	24 - 24
Norms	ISO
Protection class	dust-proof
Applications	industrial for medical applications for clean rooms
Other characteristics	corrosion-resistant with metal band cover
Stroke (mm)	35 - 3754
Force (N)	420 - 1000
Torque (Nm)	0.1 - 0.1
Speed (mm/s)	200 - 5000
Repeatability (mm)	0.01 - 0.01
