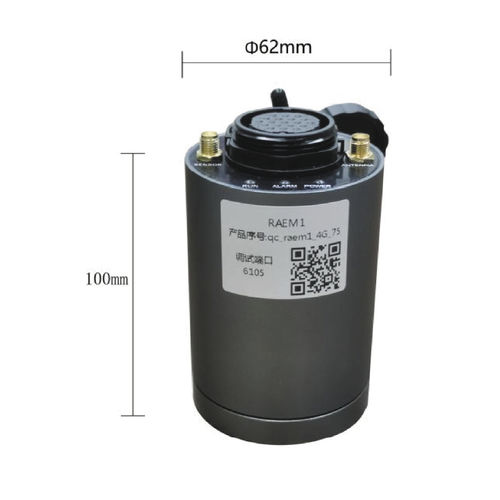

RAEM1 system is a complete full function IIoT-AE system designed for remote unattended acoustic wave (acoustic emission) long term non-destructive testing and condition monitoring applications. RAEM1 is a single channel AE monitoring system integrated with AE sensor, data acquisition, processing and transmission in one small cylinder. It can real-time monitor cracking, corrosion, leakage, wears, lubrication and other failures or defects in the early stage to predict and alarm early fault detection and maintenance.

The RAEM1 package consists of an AE sensor, built-in modules for data acquisition and analysis and transmission, a power adaptor and some accessories. When the RAEM1 detects acoustic waves on the sensor, it will automatically process, analyze and transmit the result data to the desired terminals.

Features:

> Wireless connection, reduce the cable connection workload and save cable consumption.
> Simple installation, RAEM1 magnetic suction base can be directly sucked on the equipment.

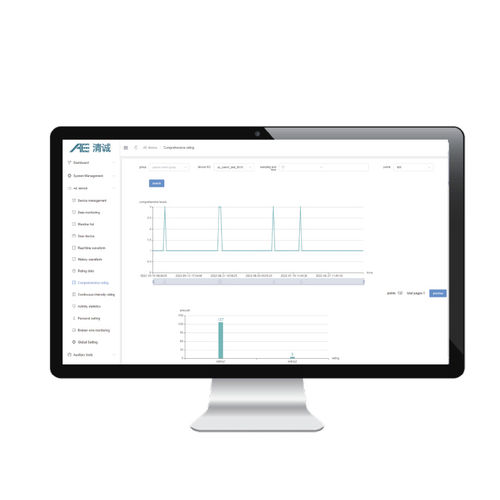

> Real-time monitoring, acoustic wave processing software can carry out real-time display and processing of signal data.
> Various acoustic wave parameters, arrival time, amplitude, counts, energy, rise time, rise counts, duration, RMS, ASL
> Smart alarming, if abnormal activities are detected, it will automatically send out alarm notifications via SMS or emails with the device information and alarm levels.
> Made of aluminum alloy shell, compact in size, light in weight, sturdy and resistant to impacts, easy to carry.

Parameter Name	Parameter Value
Type	condition corrosion wear acoustic wave sound impact
Applications	for CNC machines process alarm bridge for valves for crane rotary machine acoustic emission for pipelines crack detection for remote control turbine bearing for gear units for leak detection lubrication for boiler for bearings for pumps for storage tanks for predictive maintenance for wind turbine
Domain	for the automotive industry for the construction industry for the electronics industry for the petrochemical industry for the metallurgical industry for the mining industry for power generation
Technology	ultrasound
Configuration	portable compact
Interface	Ethernet Modbus IP PoE RS-485 wireless internet IoT
Other characteristics	continuous real-time digital online stand-alone remote automatic data acquisition high-precision smart with data logging high-performance early-warning individual multi-parameter high-frequency
