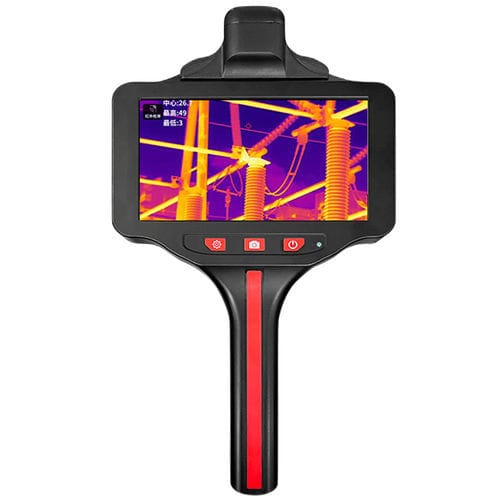

IRS180, The Imager combines both ultrasonic frequencies & infrared to detect partial Discharge as accurately as possible, finding Partial Discharge that is often entirely inaudible and unseen to the human ear/eye. The IRS180 Imaging Camera can find Partial Discharge missed by UV cameras, such as Discharge inside cable terminations or discharge that
you do not have direct line-of-sight.

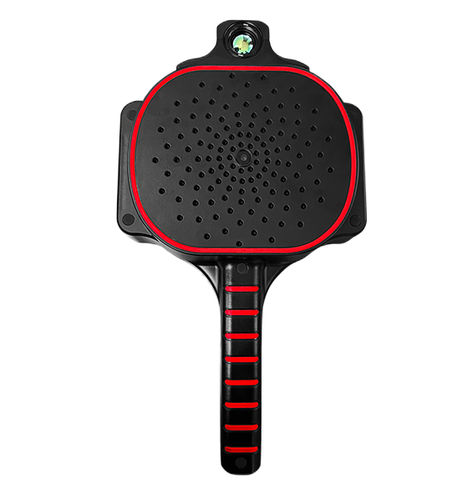

The IRS180 Imaging Camera uses multiple microphones and an IR technique. The Imager's 128 state-of-the-art microphones enable exceptional sensitivity and accuracy in finding critical problems.
The IRS180 Imager can give an instant overview of the located partial Discharge through the PRPD pattern. To help analyse the located Partial Discharge in detail, we have our software to keep the recorded test results on the SD card (64 GB) or the BST Cloud.

- 128 MEMS microphones
- 384 x 288 infrared camera
- Locating defects in electrical equipment (electrical, vibration, leakage, infrared)
- One-handed operation for flexibility
- Integrated design for portability and flexibility of use
- 8 megapixel HD camera clearly shows defects
- Testing frequencies from 2KHz ~ 65KHz
- Testing range from 0.3m ~ 130m

Parameter Name	Parameter Value
Applications	industrial
Technology	digital
Function	thermal imaging for partial discharge detection for gas leak detection corona detection acoustic inspection
Spectrum	IR, ultrasonic
Interface	USB 3.0
Resolution level	1024 x 600
Resolution	8 Mpx
Other characteristics	outdoor high-sensitivity lightweight wireless compact handheld with touch screen
