Near Field, Far Field and Acoustic Holography

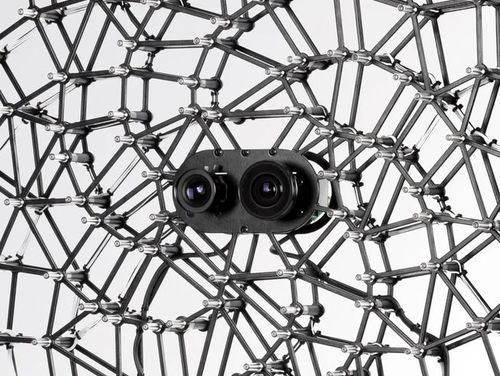

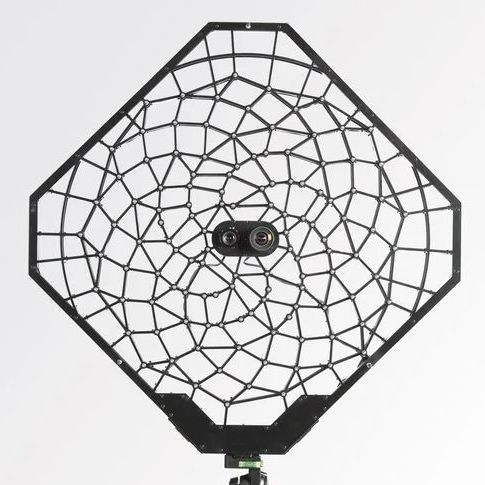

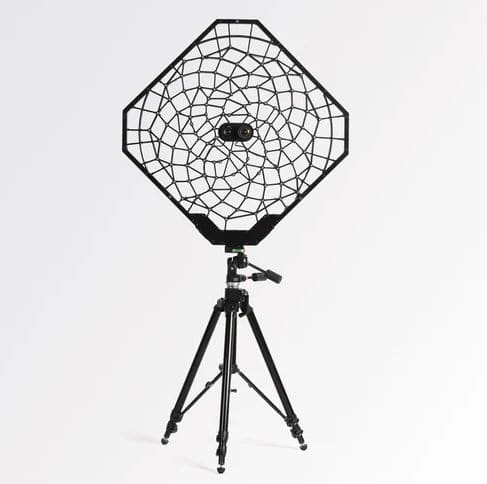

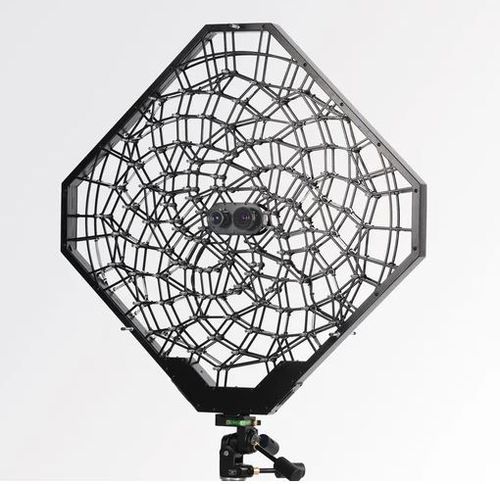

The Fibonacci array is the first Acoustic Camera that allows near field as well as far field measurements. The aluminum structure of the array guarantees the maximum possible acoustic transparency as well as a precise microphone alignment. Due to the spiral microphone arrangement, beamforming achieves the highest possible spatial resolution and the best possible map dynamics. In combination with the NoiseImage analysis software, the pecially optimized microphone arrangement allows the user to use the Fibonacci array for holography (SONAH and HELS) and standard beamforming analyses. The array comes standard with both an integrated Intel® RealSenseTM depth camera, which has full HD resolution and the ability to record depth information, and a Baumer camera. In this combination, you get excellent measurement results in near-field and far-field applications

Application:
Environmental noise control
Wind tunnel measurements
Acoustic leakage detection
Low-frequency sound sources in the near field
High-frequency sound sources in the far field

Parameter Name	Parameter Value
Applications	industrial for vehicles for the automotive industry for research and development for process monitoring laboratory for quality control R&D
Technology	digital analog
Function	for leak detection for optical inspection measuring acoustic Environmental noise monitoring for acoustic holography
Interface	Ethernet
Resolution level	1920 x 1080
Other characteristics	high-end outdoor indoor lightweight far field high dynamic range with microphone rugged video with measurement software ultra-compact narrow-field near field
