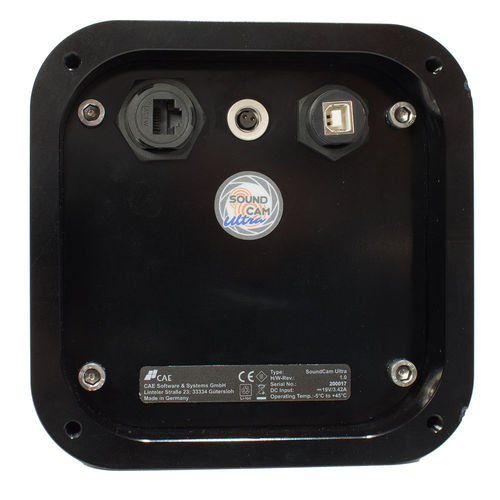

The SoundCam Ultra Sensor is the first acoustic camera in the SoundCam family designed specifically for integration. The system is intuitive to use with the included software. The SoundCam Ultra Sensor locates sound sources in real time and immediately streams the results on your PC or to a monitoring system.

The SoundCam Sensor can be attached to a machine or a robot, for example. Communication with the SoundCam sensor is logically via TCP/IP, physically via Ethernet. For the acquisition of sensor data, a documentation of the interface is available. One or more of these sensors can be used for a variety of applications e.g. machine monitoring, leakage detection, animal and traffic monitoring.

The interface description allows to write own analysis software for the SoundCam. The sensor consists of 72 microphones with a sampling rate of 200 kHz and an optical camera. The high speed and accuracy make the system also applicable in a very high frequency range up to 100 kHz.


size of the acoustic camera - 120 mm
Spezifikationen der akustischen Kamera - <33 dB to 120 dB with up to 40 dB dynamic
number of microphones of the acoustic camera - 72 MEMS-microphones, 24 bit resolution,
Samplerate 200 kHz, frequencyrange 10 Hz - 100 kHz
recommend frequency range of the acoustic camera - from 2000 Hz with beamforming-methods; below with decreased resolution
material of the acoustic camera - aluminium
weight of the acoustic camera - 1,9 kg

Parameter Name	Parameter Value
Applications	machine vision rugged for process monitoring for UAVs
Technology	digital
Function	monitoring detection acoustic for robotic vision
Spectrum	hyperspectral, ultrasonic
Interface	USB Ethernet
Other characteristics	IP54 high-speed high-sensitivity high dynamic range high-end low-noise level compact stationary with measurement software portable with real time viewing (RTV) rugged remote-controlled PC-mounted programmable
