About

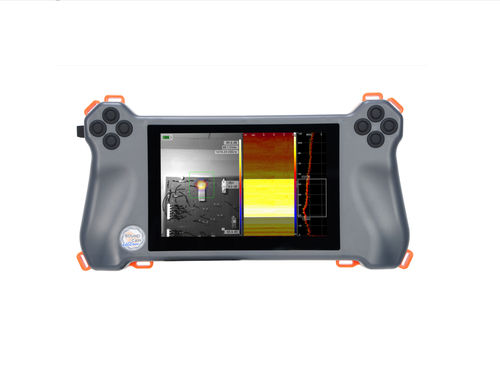

The new SoundCam Ultra 3 is an ultrasound-capable camera with outstanding performance features. The high number of microphones ensures
high-resolution images with very high dynamics. Even weak sound sources can be made visible in the presence of strong sources. Of course, the
microphone data is analyzed in real time. Simultaneous data from the optical and thermal imaging camera as well as other sensors ensure optimum
information acquisition with very simple and intuitive operation. In addition to the standard mode, which is very easy to operate, and the Pro mode,
which is used for very sophisticated analyses, operating modes are implemented for special applications, such as the leakage mode for locating and
quantifying leaks in compressed air systems or the partial discharge mode for locating and evaluating partial discharges on high-voltage systems.
The SoundCam Ultra 3 is not only a superior measuring instrument, but with the help of a Windows software package it is also a comprehensive tool
that takes you all the way to the finished PDF report of your leaks or partial discharges.
The SoundCam Ultra 3 combines ease of use with performance, completes measurement tasks right up to the report and is resource-saving.

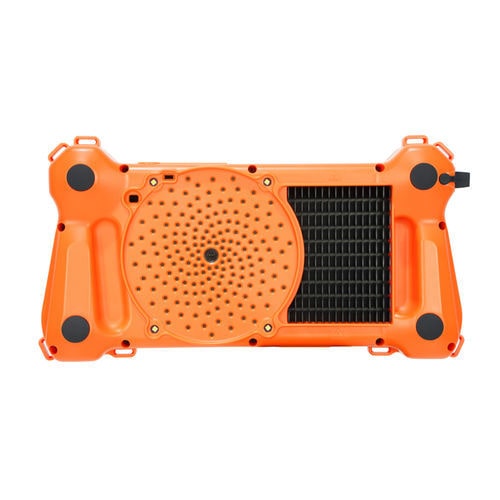

»» Extremely high dynamic range and accuracy thanks to the optimized
array with 176 microphones and 200 kHz sampling rate at 24 bit
resolution
»» Wide frequency range for more sensitive detection
»» High frame rate of the acoustic video for the detection of transient
noise
»» Synchronization between acoustic and optical video for high
analysis accuracy
»» Simultaneous acquisition and recording of the acoustic, optical and
thermal image
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
industrial
|
| Technology |
|
| Function |
|
| Spectrum |
LWIR, visible, ultrasonic
|
| Sensor |
microbolometer
|
| Interface |
|
| Other characteristics |
|
