All-in-One Soundcam Octagon for Demanding Measurements to Localize Sound Sources
The new compact Octagon sound camera is the perfect solution for all challenging measurement tasks when localizing sound sources. It was manufactured in a sandwich carbon construction and is lightweight and robust. 192 MEMS microphones in an acoustically transparent frame guarantee high precision with the highest dynamic.
The all-in-one Acoustic Camera consists of:
Microphone array
Integrated data recorder and
Separate notebook with the software NoiseImage
All-in-one Acoustic Camera Octagon with 192 MEMS microphonesAll-in-one Acoustic Camera Octagon with 192 MEMS microphones
This new system is perfectly suited for demanded measurements.
Whether performing detailed acoustic analysis of products and components, locating leaks in buildings and pipelines, or performing correlation measurements on rotating machinery for order analysis, the Octagon sound camera is ready to deliver accurate results.
Due to the dense microphone distribution, beamforming as well as holography measurements are possible – covering a frequency range of 30 – 24.000 Hz.
From acoustic data acquisition to data analysis – this innovative sound camera offers all components for acoustic measurements, data acquisition and data analysis. This allows sound sources to be easily and quickly localized and analyzed.

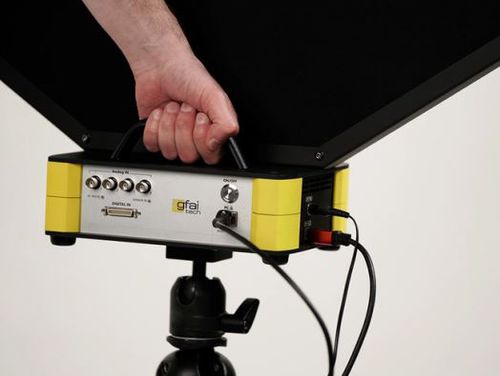

The integrated data acquisition makes it a handy system with no set-up time. 4 digital and 4 analog channels can be directly connected to the Octagon for your additional sensors.
of applications in R&D, quality assurance, maintenance or environmental acoustics.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
|
| Technology |
|
| Function |
|
| Resolution level |
1920 x 1080
|
| Other characteristics |
|
