Easy localization and visualization of sound sources for various applications

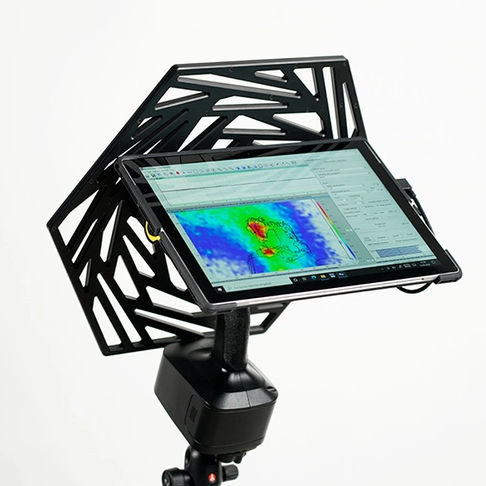

The portable all-in-one sound camera MIKADO is a comprehensive solution for fast and effective troubleshooting of noise and vibration problems. This cable-free handheld device offers flexibility in measurement positions and angles and enables quick identification of noise sources with acoustic signals.

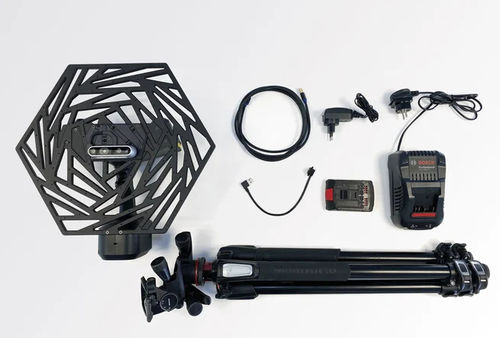

The sound camera integrates all the components required for acoustic measurements, data acquisition and analysis in a single, easy-to-use device.

Equipped with 96 MEMS microphones and an Intel® RealSense camera, MIKADO delivers detailed acoustic images and simultaneously captures a 3D model using DynaBeam technology. This enables a realistic visualization of the directional characteristics of sound sources in three dimensions and thus increases the accuracy of the acoustic measurement results.

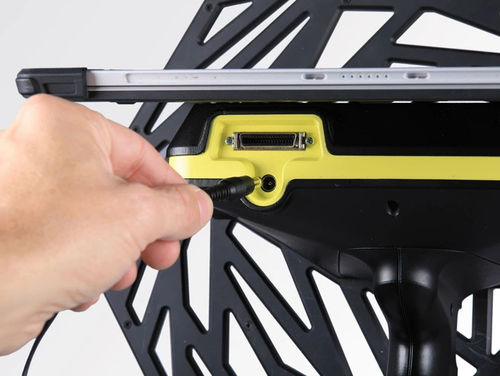

Efficient data acquisition is achieved with the integrated data recorder. 96 digital microphone channels are processed with up to 48 kHz. 4 isolated differential digital inputs allow a record of additional sensors.

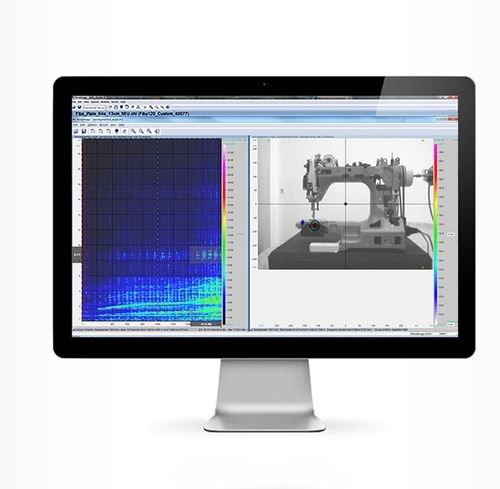

Use sound analysis software NoiseImage Mobile in the post-processing to correlate the additional information with the acoustic signals.

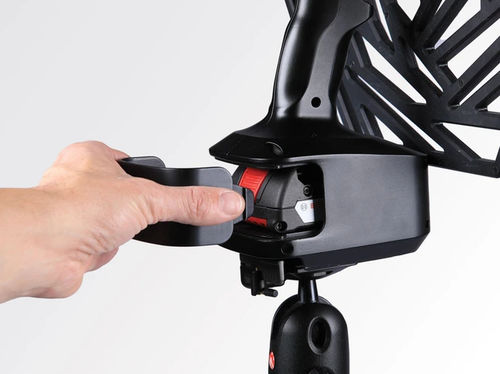

The exchangeable Li-ion battery and Surface Pro tablet make it a completely autonomous device.

MIKADO sets new standards in sound visualization, offering unmatched versatility, accuracy and efficiency in noise and vibration troubleshooting.

Parameter Name	Parameter Value
Applications	for research and development industrial for scientific applications for vehicles for the automotive industry for quality control HVAC for the food industry for process monitoring for production laboratory R&D rugged for pipes for electronics for robotics
Technology	digital
Function	for leak detection inspection measuring acoustic
Other characteristics	wireless board with LCD screen with touch screen handheld mobile tablet
